Description

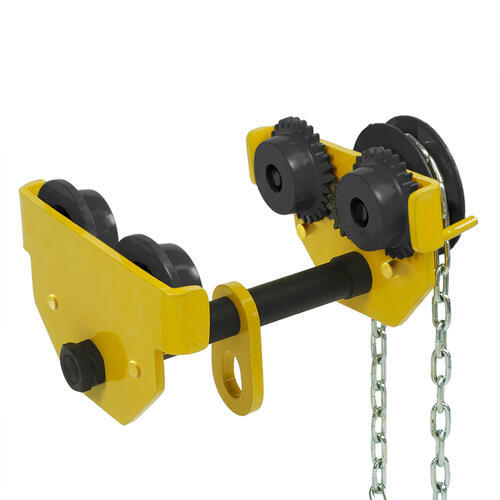

Austlift Geared Trolley

The Austlift geared trolley is hand-operated by pulling the hand chain, running on the bottom flange of the monorail. With the main shaft with spacers, you can adjust the width of the beam. They are widely used in factories, mines, wharves, docks, warehouses and engineering workshops for the installation of equipment and conveyance of goods. They are especially suitable for the maintenance and repairing of equipment in places where no power supply is available.

  • Standard hand chain is 3 metres.
  • High quality sealed ball bearings.
  • Identification tag with serial number.
  • Fitted with anti-drop plates for safety.
  • Low headroom by design.
  • Suitable for I beam (UC Beam), we can change wheels of trolley for H beam (UB Beam) for an additional cost.

Specifications

  • AIMS SKU A0168348
  • Brand Austlift
  • Model Number 131505
  • Weight (kg) 14
  • Dimension A (mm) 296
  • Dimension B (mm) 236
  • Dimension C (mm) 211
  • Dimension D (mm) 122
  • Dimension H (mm) 19
  • Chain Length 3 m
  • WLL (T) 1
  • Beam Size (mm) 64 - 203
  • Pulling Force (n) 80
  • Type Geared Trolley
SKU: A0168348

Austlift Geared Trolley Model GT01 1Tonne, 64 - 203mm

Austlift Geared Trolley

$192.79
