Description

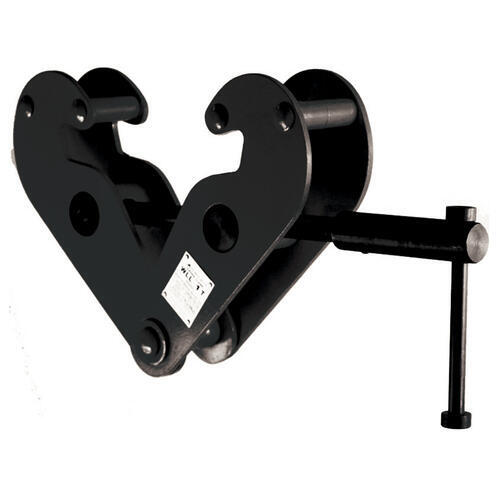

Austlift Girder Clamp

Austlift girder clamps are designed to lift steel girders and narrow steel plates or clamped on the girder to utilize as a lifting point.

  • Can use on material hardness up to 37RC.
  • Individually serial numbered with test certificates and user manual.
  • Can only be used on vertical lift.

Specifications

  • AIMS SKU A0168358
  • Brand Austlift
  • Model Number 132005B
  • Weight (kg) 4.5
  • B Min (mm) 180
  • B Max (mm) 360
  • Dimension C (mm) 64
  • Dimension D (mm) 5
  • Dimension E (mm) 215
  • Dimension G (mm) 25
  • Dimension H (mm) 22
  • WLL (T) 1
  • Beam Size (mm) 75 - 220
  • A Max (mm) 260
  • F Min. (mm) 102
  • F Max (mm) 155
  • Type Girder Clamp
SKU: A0168358

Austlift Girder Clamp Black 1Tonne, 75 - 220mm

Austlift Girder Clamp

$98.25
