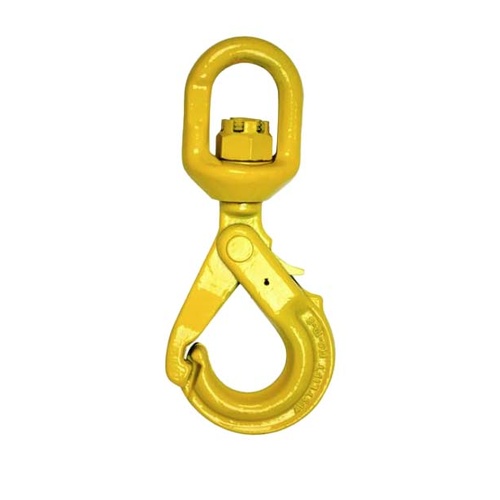

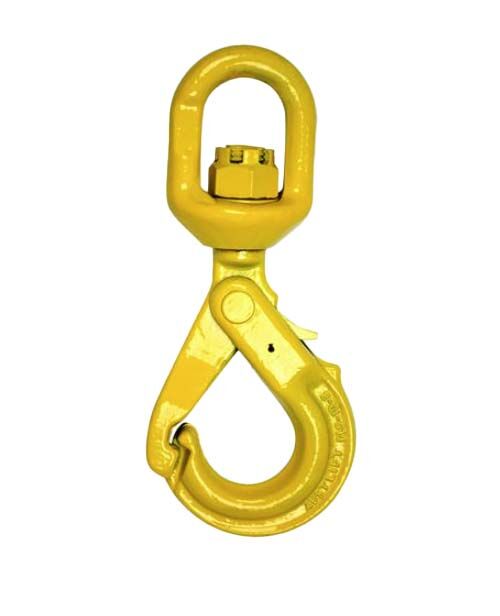

Austlift Grip Swivel Self Locking Hook Swivel NS Type

Description

Austlift Grip Swivel Self Locking Hook Swivel NS Type

Austlift NS type swivel self-locking hooks are designed with a plain bush-bearing swivel to allow the hook to reduce twist under load.
They also have a unique design to prevent side loading of the latch.
Marked with chain size, batch number, grade, Austlift branded with manufacture quality mark.
Batch tested, test certificates available upon request.
Safety factor of 4 to 1.
Spare trigger kits are available.

Specifications

AIMS SKU A0209119

Brand Austlift

Model Number 102708

Barcode Number 9345339005328

Size (mm) 8

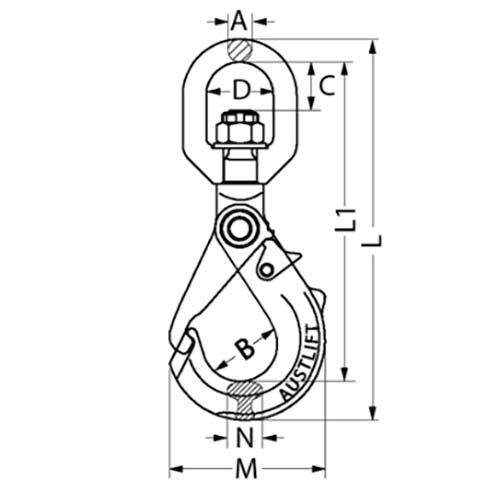

Dimension A (mm) 12.5

Dimension B (mm) 40

Dimension C (mm) 26

Dimension D (mm) 35.5

Weight (kgs) 0.97

Dimension L (mm) 216

WLL 2 T

Dimension N (mm) 18

Dimension L1 (mm) 182

Dimension M (mm) 83

Type Swivel Self Locking Hook
Grade G80
