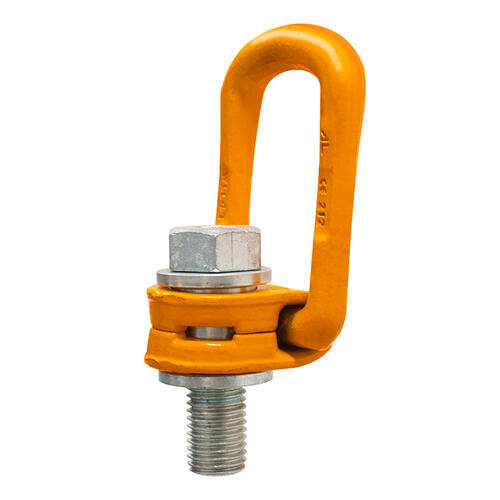

Austlift Large Swivel Eye Bolt (Short Thread)

  • Large ring bolt accordingly to EN 818-4 for load ring and AS2318 for the swivel component.
  • Used as a swiveling load ring able to swivel 360° with a pivot of 180°.
  • Made from G80 alloy steel with Orange painted finish,manufactured with an elongated ring in metric thread sizes.
  • Marked with work load limit in tonne, nominal size in millimetre, quality mark and supplier identification.
  • Proof tested to 1.25 x working load limit.
  • Test certificate available upon request.

Notes

  • Long thread eye bolts can be cut to suits jobs.
  • When cutting the bolts a cold cutting method must be used.
  • Do not use Oxy- Acetylene cutting.
  • The lengthafter cutting must not be less than 1.5 times that of its diametre.

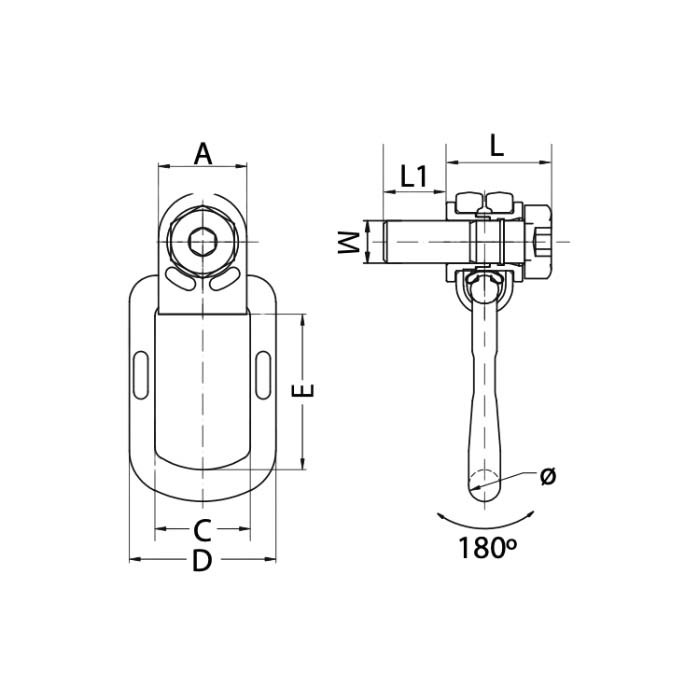

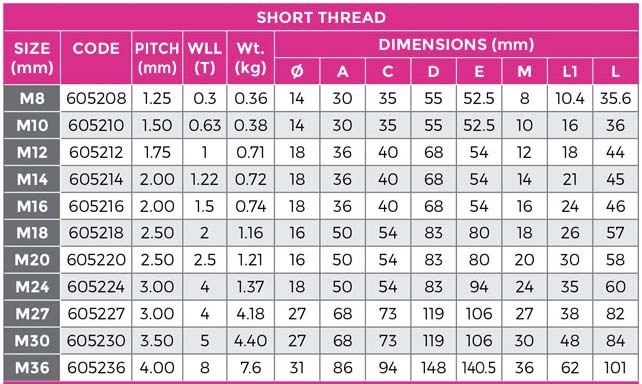

Specifications

  • AIMS SKU A0168905
  • Brand Austlift
  • Model Number 605208
  • Size (mm) M8
  • L1 (mm) 10.4
  • C (mm) 35
  • A (mm) 30
  • E (mm) 52.5
  • D (mm) 55
  • L (mm) 35.6
  • M (mm) 8
  • WLL (T) 0.3
  • Ø (mm) 14
  • Wt. (kg) 0.36
  • BL (T) 1.2
  • Type Swivel Eye Bolt
SKU: A0168905

Austlift Large Swivel Eye Bolt M8 x 0.3T WLL

Austlift Large Swivel Eye Bolt (Short Thread)

$53.44
