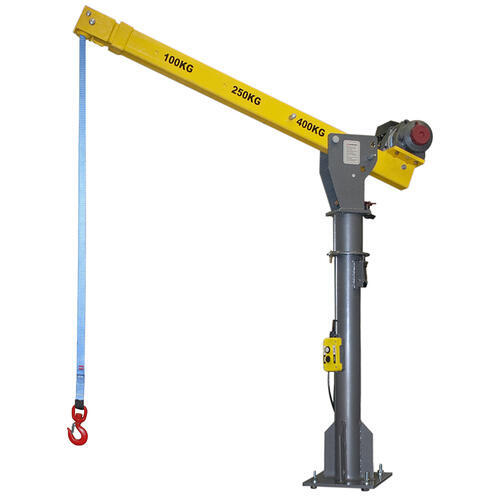

Austlift Mini Crane Aussie Fetch With Lifting Height
Aussie Fetch is an upgraded design of vehicle crane. Austlift uses flat web sling to replace old wire rope sling to eliminate twisting for easy to use. A new slewing stop design is for safer operating if the vehicle is parked on sloped ground. The design focus of this crane is to provide an economical, light weight lifting device to ensure safer lifting.Work load limit 400kg.
Maximum arm extension: 360 degrees unlimited slowing.
Compact design, folds away when not in use.
It can be installed in Austlift workshop, by authorized vehicle body builder, or by owner self with competent mechanical knowledge.
Specifications
SWL (kg): 400
NW (kg): 55
Max Lifting Height (mm): 2000
Max Reach (mm): 1470
Rotation: 360° Manual

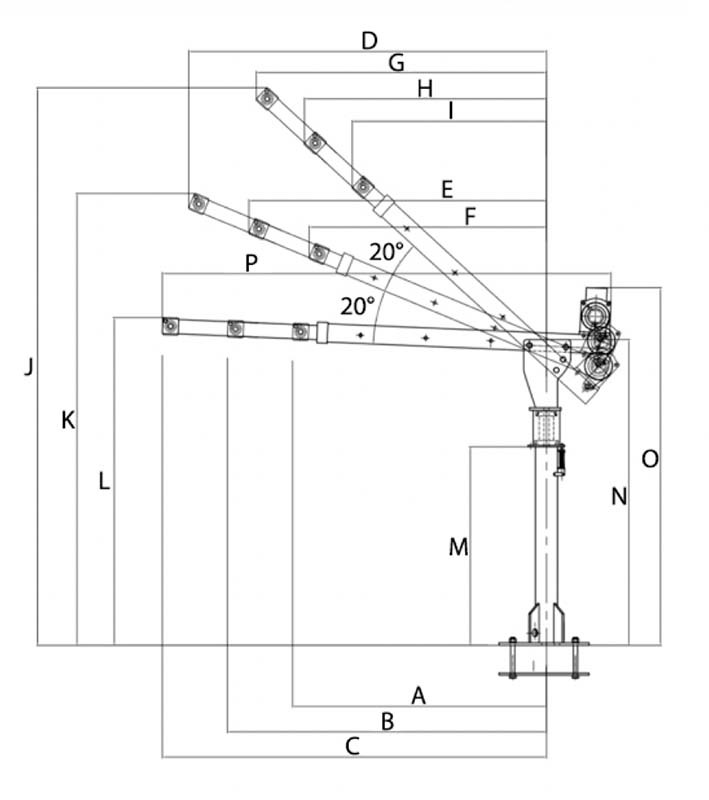

Dimensions in mm
A: 973
B: 1223
C: 1472
D: 1371
E: 1140
F: 909
G: 1112
H: 928
I: 744
J: 2133
K: 1729
L: 1255
M: 760
N:1162
O: 1370
P: 1720
Specifications
AIMS SKUA0169597
BrandAustlift
Model Number145080
TypeMini Crane
SKU: A0169597
Austlift Mini Crane Aussie Fetch 400kg With Lifting Height 2m
