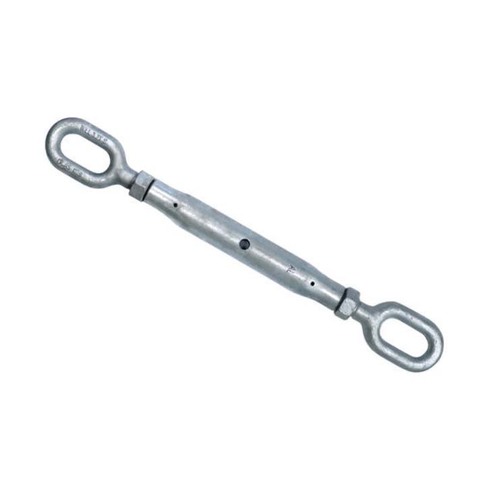

Austlift Rigging Screw Grade S Eye/Eye

Description

Austlift Rigging Screw Grade S Eye/Eye

Generally used for straight or in line tensioning in conjunction with wire rope and or chain assemblies when heavy duty straining and lifting applications are required.
Manufactured from Grade S high tensile material quenched and tempered hot dipped galvanised finish , suitable for outdoor use, available in metric sizing.
Meets the design requirements of AS2319 Proof tested to 2 x WLL and minimum break force is 6 x WLL.
Suitable for industrial lifting purposes.
Individual proof tested.

Specifications

AIMS SKU A0207193

Brand Austlift

Model Number 407312

Barcode Number 9345339032393

Size 12 mm

Dimension A (mm) 229

Dimension C (mm) 182

Dimension D (mm) 25

Dimension G (mm) 14

Dimension H (mm) 36

Dimension I (mm) 36

Weight (kgs) 0.98

WLL 1.2T

Dimension J (mm) 11

Dimension N (mm) 380

Dimension O (mm) 555

Type Rigging Screw
