Austlift Snatch Block With Shackle Head

Description

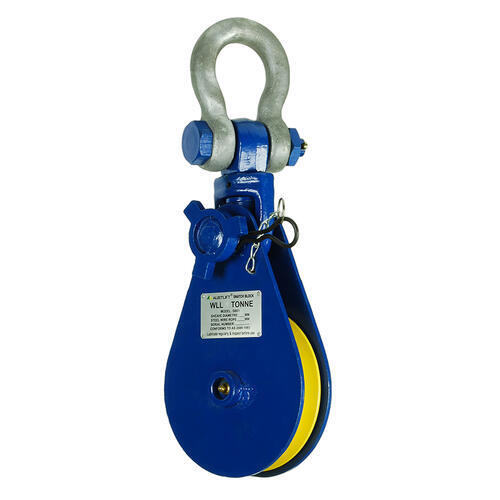

Austlift Snatch Block With Shackle Head

Austlift manually operated snatch blocks are popular in mining, construction, off shore rigging and heavy duty lifting applications. Complies with AS/NZS 2089.

Made from hi-tensile steel body and cast steel sheave.
Grease nipples fitted with roller bearings (2-50T) and brass bush bearings (2T).
Blocks come with swivel bow shackle.
Drop forged, heat treated swivel shackle.

Specifications

AIMS SKU A0168361

Brand Austlift

Model Number 140103

Weight (kg) 6.1

Wire Rope Dia (mm) 10 - 13

Sheave Diameter (mm) 115

Dimension B (mm) 120

Dimension C (mm) 70

WLL (T) 4

Height A (mm) 345

Type Snatch Block With Shackle Head
Material Steel Body / Cast Steel Sheave

Calculate Shipping

Resources

Technical Data Sheet
