Austlift Swivel Ball Bearing Self Locking Hook G100

Description

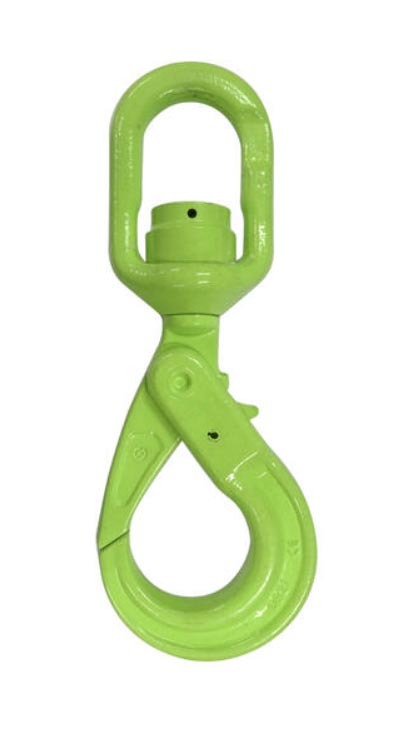

Austlift Swivel Ball Bearing Self Locking Hook G100

Self Locking Hook (Swivel Type, LS).
Austlift Grade 100 Swivel Self-locking Hook has a ball bearing swivel to allow the hook to swivel thus reducing the twist of a sling.
Marked with chain size, designation, grade, manufacture quality mark, and Austlift branded.
25% higher work load limit than G80.
Batch tested, test certificates available upon request.
Spare trigger kits are available.
Fatigue tested > 20,000 times.

Specifications

AIMS SKU A0207685

Brand Austlift

Model Number 173706

Barcode Number 9345339032997

Size (mm) 6

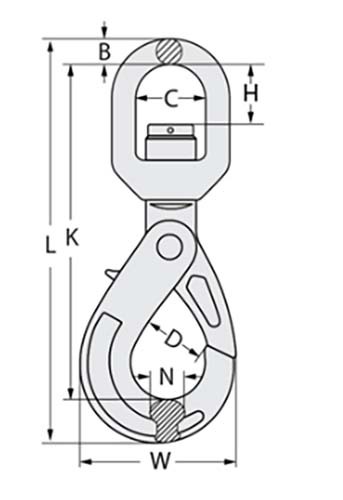

Dimension (mm) C 32.5

Weight (kgs) 0.67

WLL 1.4 T

Dimension (mm) B 13.5

Dimension (mm) D 27

Dimension (mm) H 35

Dimension (mm) K 163

Dimension (mm) L 196

Dimension (mm) N 15

Dimension (mm) W 71

Type Swivel Ball Bearing Self Locking Hook
