Austlift Wire Rope Thimble AS Type Galvanised (Gold Tip) 6mm - 302506

Description

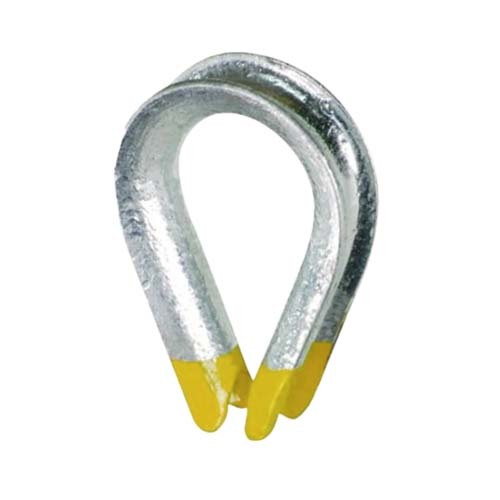

Austlift Thimble AS Type Galvanised (Gold Tip)

AS Thimbles are recommended for heavy duty applications.
Made from heat treated high tensile steel material.
Sizes available are from 6mm to 52mm.
Hot dipped galvanized finish.
Can be used in -40° temperature.
For lifting purposes.

Specifications

AIMS SKU A0207917

Brand Austlift

Model Number 302506

Barcode Number 9345339011619

Size (mm) 6

MBF (kN) 20.9

Weight (kgs) 0.04

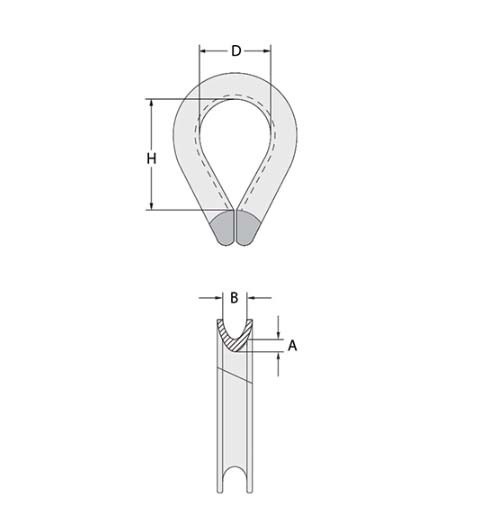

Dimension A (mm) ±5% 4

Dimension B (mm) ±5% 7

Dimension D (mm) ±5% 16

Dimension H (mm) ±5% 25

Type Wire Rope Thimble
