Description

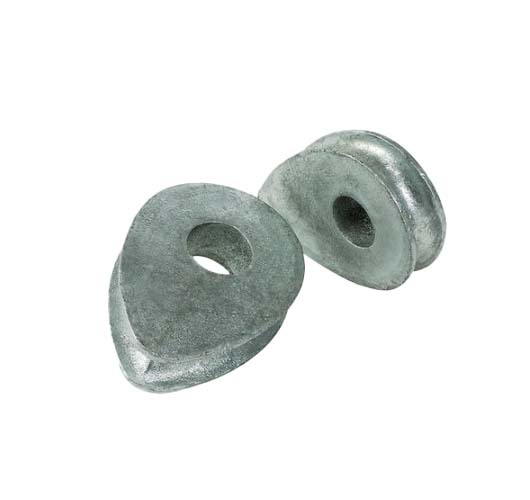

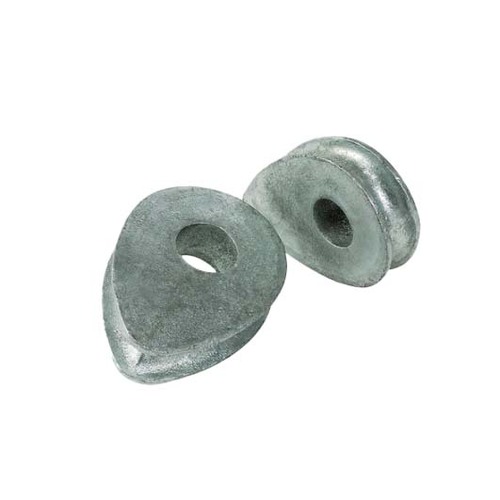

Austlift Thimble Solid Eye Pre-Drilled Hole

  • Pre-drilled Solid Eye Thimble.
  • Solid thimbles are recommended where loads can be connected to a nolt or pin.
  • Made from heat treated high tensile steel material.
  • Hot dipped galvanized finish.
  • Other drilled hole sizes are available at additional charge.
  • Refer to the Australian Standards for advise on drilling larger hole sizes.
  • For Lifting Purposes.

Specifications

  • AIMS SKU A0207949
  • Brand Austlift
  • Model Number 302610
  • Barcode Number 9345339011831
  • Size (mm) 20
  • MBF (kN) 252

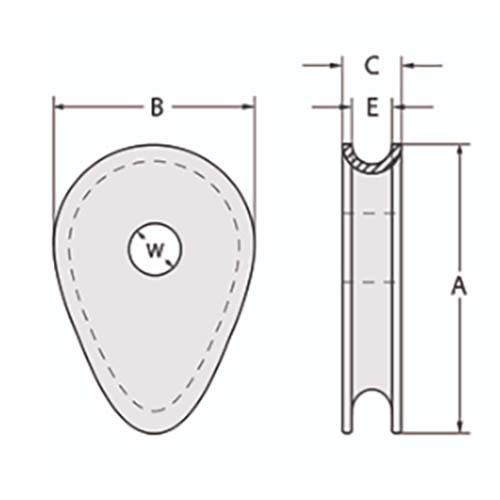

  • Dimension A (mm) 140
  • Dimension B (mm) 100
  • Dimension C (mm) 31
  • Dimension E (mm) 22
  • Weight (kgs) 1.57
  • Dimension W (mm) 35
  • Pre Drilled (Hole Size) 35mm
  • Type Thimble Solid Eye
SKU: A0207949

Austlift Thimble Solid Eye Pre-Drilled Hole 20mm, 35mm Hole - 302610
