Description

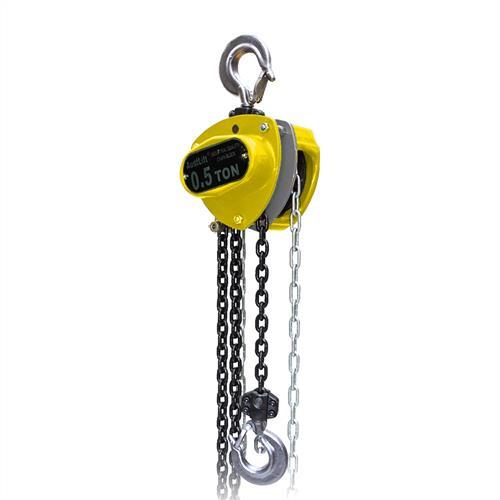

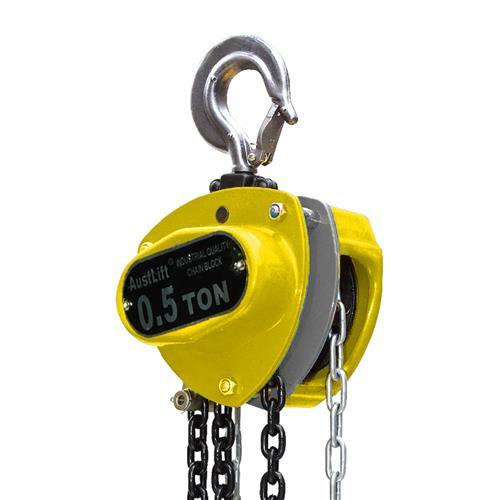

Austlift W4 Chain Block 3m

Austlift industrial grade W4 series manually operated chain blocks are used for general hoisting operation such as mining, construction, industrial lifting and domestic applications. Other colours and height of lift available upon request. Black colour available for 110500, 1T 10M chain block.

  • Standard height of lift is 3 metres. Other height of lift available. Contact AIMS for assistance.
  • Manufactured for ease of operation, and light weight in design.
  • Robust, durable and compact in construction.
  • All blocks come with ball bearing swivel hook.
  • Individually serial numbered with test certificate and instruction manual supplied.

Specifications

  • AIMS SKU A0168402
  • Brand Austlift
  • Model Number 110002
  • Standard Lift (m) 2.5
  • Dimension D (mm) 21
  • WLL (T) 0.25
  • Pulling Effort (n) 187
  • No. Of Chain Falls 1
  • Head Room A (mm) 120
  • Head Room B (mm) 115
  • Hook To Hook C (min) Mm 280
  • Test Load (t) 0.375
  • Unit Weight (kg) 7.5
  • Load Chain Size (mm) 4
  • Extra Weight/m Extra Lift (kg) 1.5
  • Working Load WLL (kg) 250
  • Type Chain Block
SKU: A0168402

Austlift W4 Chain Block 0.25Tonne (250kg) x 3m

Austlift W4 Chain Block

$146.72
