Description

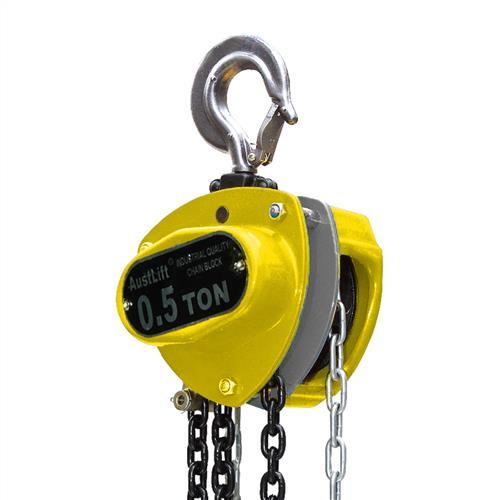

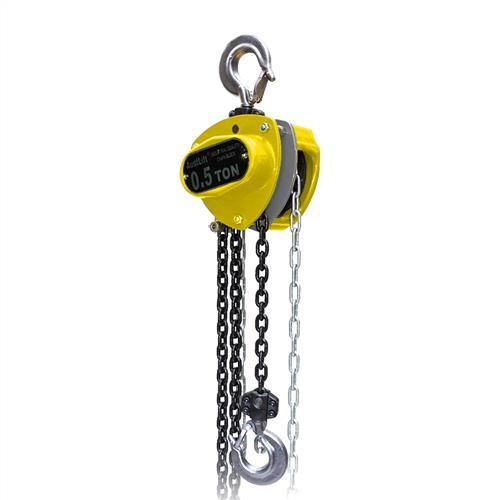

Austlift W5 Industrial Chain Block W/ Load Limit Switch

Austlift industrial grade W5 series manually operated chain blocks with overload protection are used for general hoisting operation such as mining, construction, industrial lifting and domestic applications. The overload protection is an added feature on these chain blocks protecting users and the unit itself. Other colors and height of lift available upon request.

  • Standard height of lift is 6 metre. Other height of lift available.
  • Manufactured for ease of operation, and light weight in design.
  • Robust, durable and compact in construction.
  • All blocks come with ball bearing swivel hook.
  • Individually serial numbered with test certificate and instruction manual supplied.
  • Overload protection for added safety.

Specifications

  • AIMS SKU A0169585
  • Brand Austlift
  • Model Number 112110
  • Standard Lift (m) 2.5
  • Dimension D (mm) 32
  • WLL (T) 1
  • Pulling Effort (n) 281
  • No. Of Chain Falls 1
  • Head Room A (mm) 173
  • Head Room B (mm) 150
  • Hook To Hook C (min) Mm 376
  • Test Load (t) 1.5
  • Unit Weight (kg) 12
  • Load Chain Size (mm) 6
  • Extra Weight/m Extra Lift (kg) 1.8
  • Working Load WLL (kg) 1000
  • Type Industrial Chain Block W/ Load Limit Switch
SKU: A0169585

Austlift W5 Industrial Chain Block W/ Load Limit Switch 1T (1,000kg) x 6m

Austlift W5 Industrial Chain Block W/ Load Limit Switch

$259.15
