Description

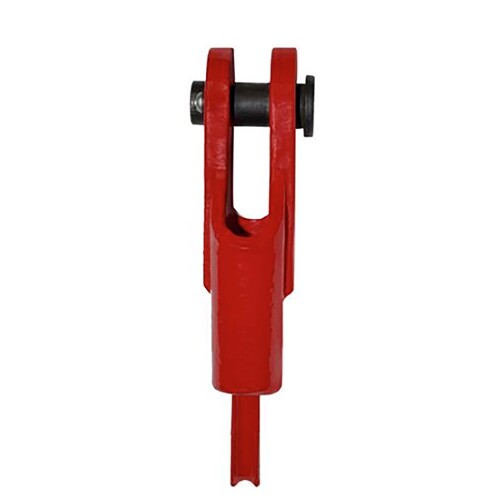

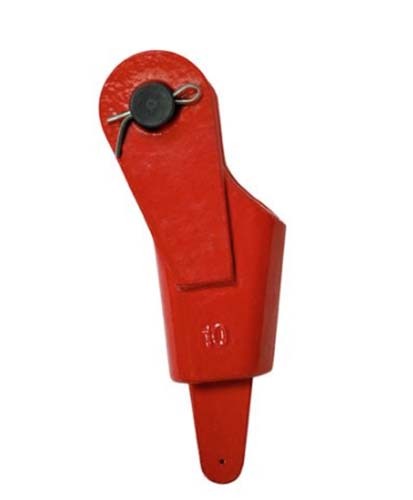

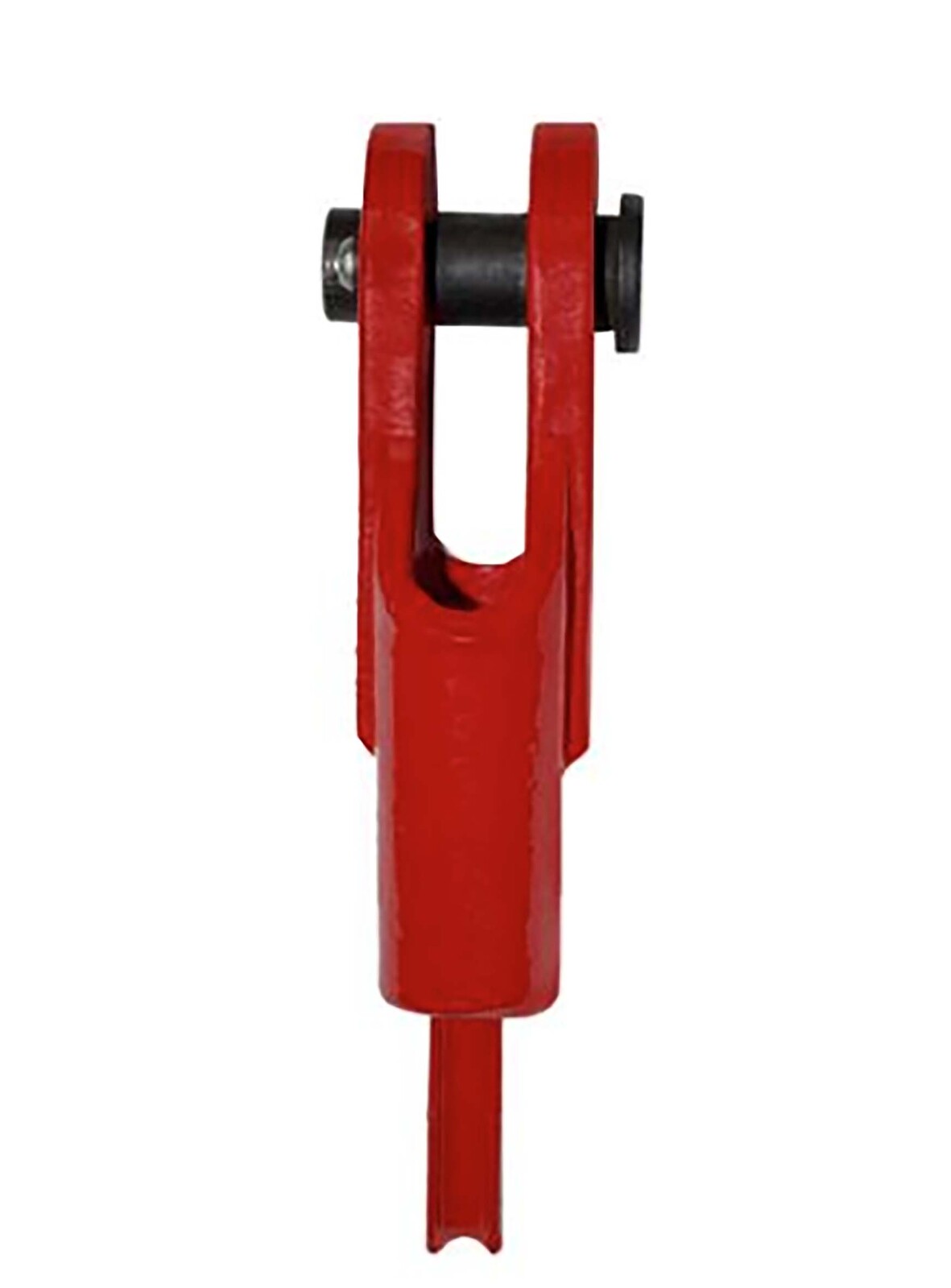

Austlift Open Wedge Socket

  • Wedge Socket (Open Type, Clevis)
  • Austlift open wedge socket is fitted to a wire rope.
  • The nominal diameter of the wire rope shall be equal to the nominal size of the wedge-type socket and the loaded end of the rope shall enter the socket body so that when loaded it will not bend where it leaves the socket body.
  • Suitable for rope termination such as crane rope applications.
  • Manufactured from forged alloy steel material.
  • Proof loaded 2 x WLL and break tested to 4 x WLL.
  • Complies to AS2740 with test certificate with each fitting.

Specifications

  • AIMS SKU A0208293
  • Brand Austlift
  • Model Number 308010
  • Barcode Number 9345339012722
  • Size (mm) 10
  • Dimension A (mm) 120
  • Dimension B (mm) 16.5
  • Dimension C (mm) 37.7
  • Dimension D (mm) 20
  • Weight (kgs) 1
  • Dimension R (mm) 25
  • WLL 1.5 T
  • Group Code 308010
  • Barcode 9345339012722
  • Type Open Wedge Socket
SKU: A0208293

Austlift Wedge Socket Open Type 10mm - 308010

Austlift Open Wedge Socket

$80.66
