Description

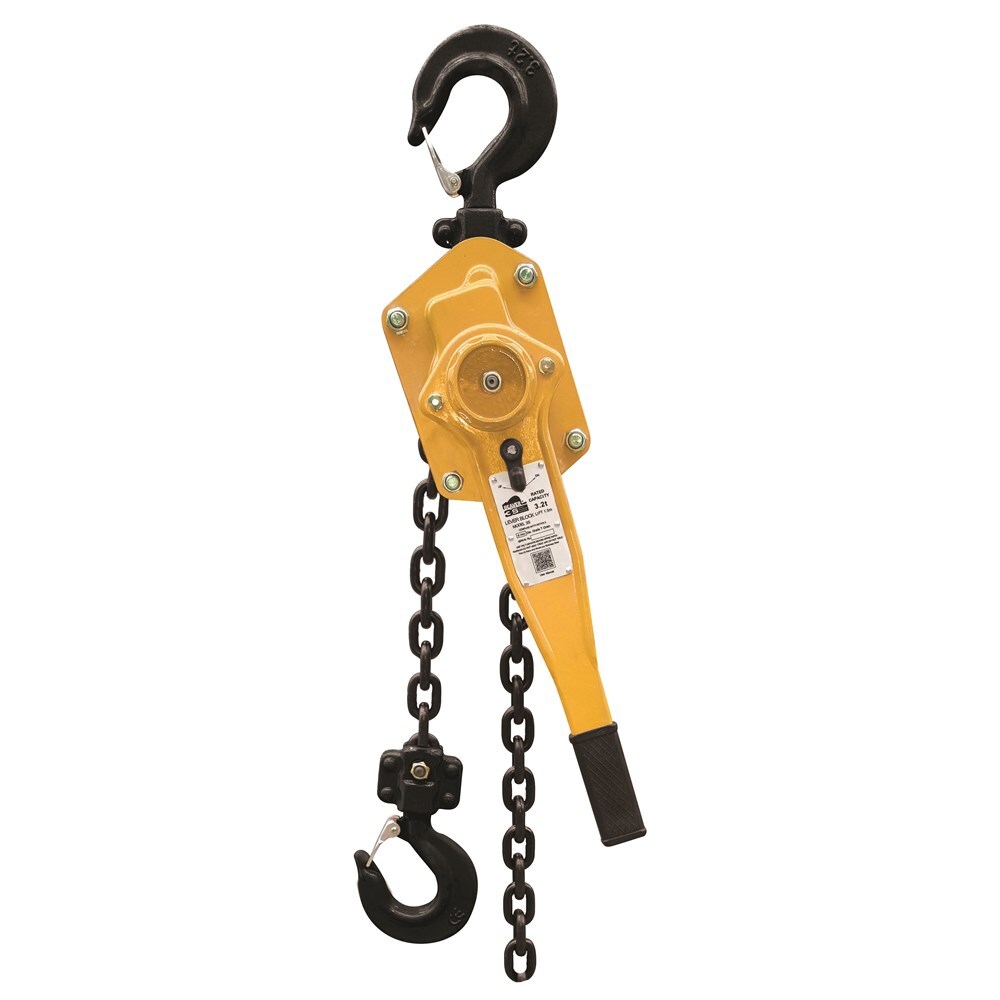

Beaver 3S Heavy Duty Industrial Overload Leaver Block

The heavy-duty Beaver lever blocks are a versatile lifting and tensioning device widely used in rigging, construction, and mining.
This range of lever blocks come with built-in safety overload clutch (limiter) technology, which means greater work safety when lifting or pulling.
The Beaver 3S industrial chain lever block mechanism and gears are enclosed in a robust all-steel compact shell.
The load chain is made of high-resistance Grade 80 alloy steel that has a black finish, is heat treated, and is calibrated and marked according to ISO 3077 and ISO 1834.
Beaver 'ID' plates and rivets are supplied in stainless steel (a non-conductive material) in order to avoid dangerous sparking, making them ideal for underground mining.
Every Beaver 3S Industrial level block is operationally tested to its rated capacity and is supplier with a test certificate, relating to its stamped identification side plate.
This lever block complies to AS 1418.2 and approved Colour Coded to Match International Lifting Standard.

Specifications

AIMS SKU A0204016

Brand Beaver

Model Number 507320

Standard Lift (m) 1.5

Dimension A 200mm

Dimension B 115mm

Dimension C 180mm

Dimension D 410mm

Dimension E 40mm

Dimension H 480mm

Colour Code Yellow

Test Load (kn) 45kN

Rated Capacity 3.2T

Load Chain Diameter 10mm x 30mm

Net Weight 21kg

Effot on Lever To Lift Full Load 320N

No. Load Chain Falls 1
