Beaver 3S Lever Block Steel Pro 0.25T (250kg) Capacity - 509025

Description

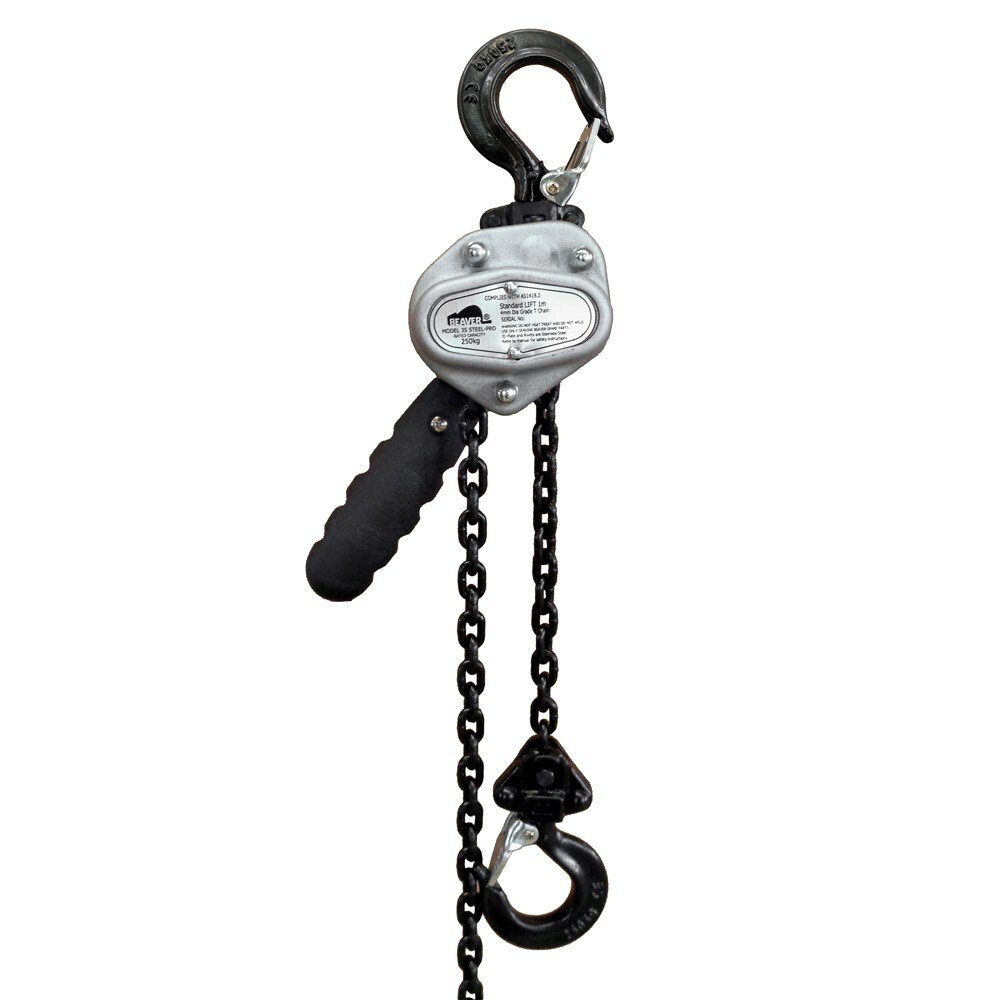

Beaver 3S Lever Block Steel Pro

Beaver 3S Lever Block Steel Pro 250kg is designed for small to medium size lifting and pulling applications.

Features & Benefits

Compact, lightweight rugged design only weighs 2.3kg.
Full Body Steel cast construction, gear case, and cover are impact resistant.
Unique design on top and bottom hooks with ball bearings with safety catches.
Rubberised safety grip handle.
A comprehensive range of spare parts is available.
Every 3S Lever Block Steel Pro 250kg is identified with its own serial number that relates directly to a test certificate.

Materials

Steel
G80 Calibrated load chain
Robust cast steel housing
Rubberised handle
Ball bearings in top & bottom hooks

Applications

Mining
Rigging and constructions
General Purpose
Industrial use
Mechanical
Lightweight small and compact for confined work areas

Approved Standards

Complies to AS/NZS 1418.2
Grade 80 Calibrated Chain and marked according to ISO 3077

Specifications

AIMS SKU A0175229

Brand Beaver

Model Number 509025

Type Lever Block

Working Load Limit 250kg

Standard Lift 1m

Running Test 375kg

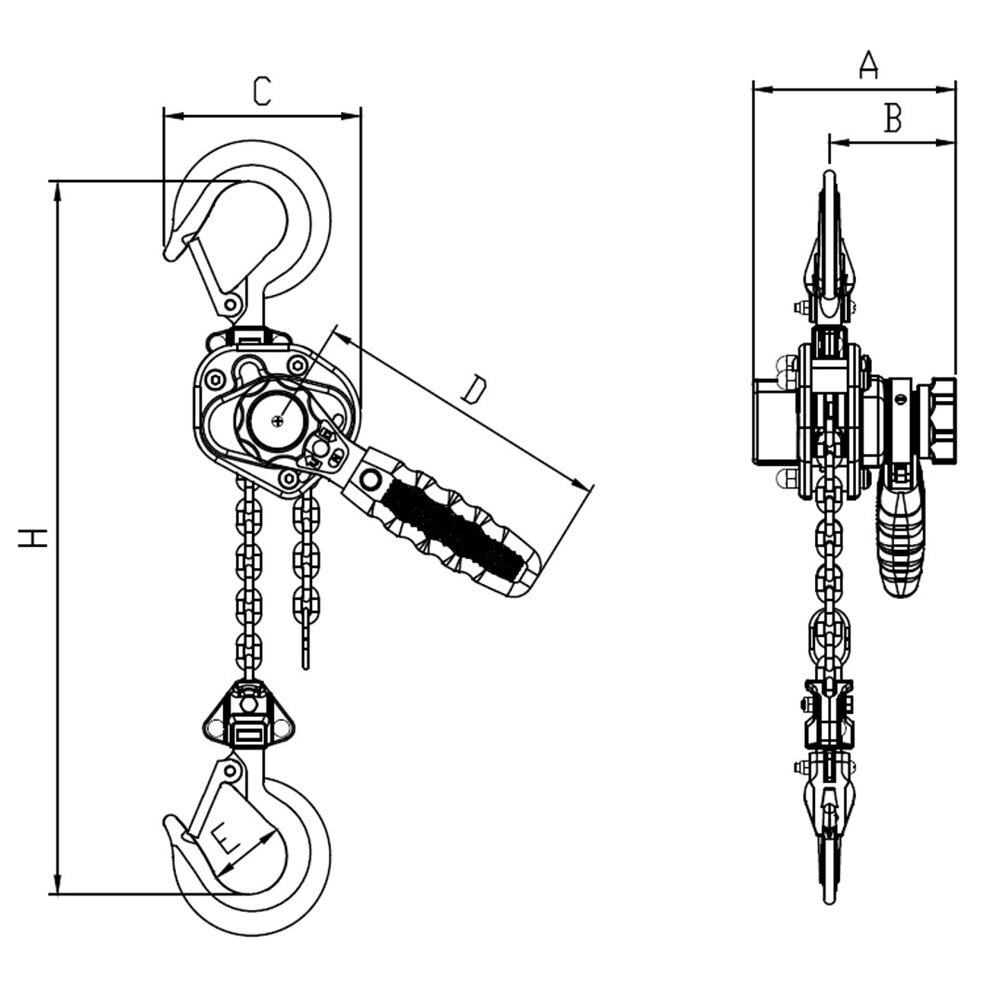

Headroom (H) 230mm

Effort on Lever to lift Full Load 200N

Number of Load Chain Falls 1

Load Chain Diameter 4 x 12mm

Net Weight 2.3kg

Dimension (A) 106mm

Dimension (B) 66mm

Dimension © 90mm

Dimension (D) 160mm

Dimension (E) 32mm
