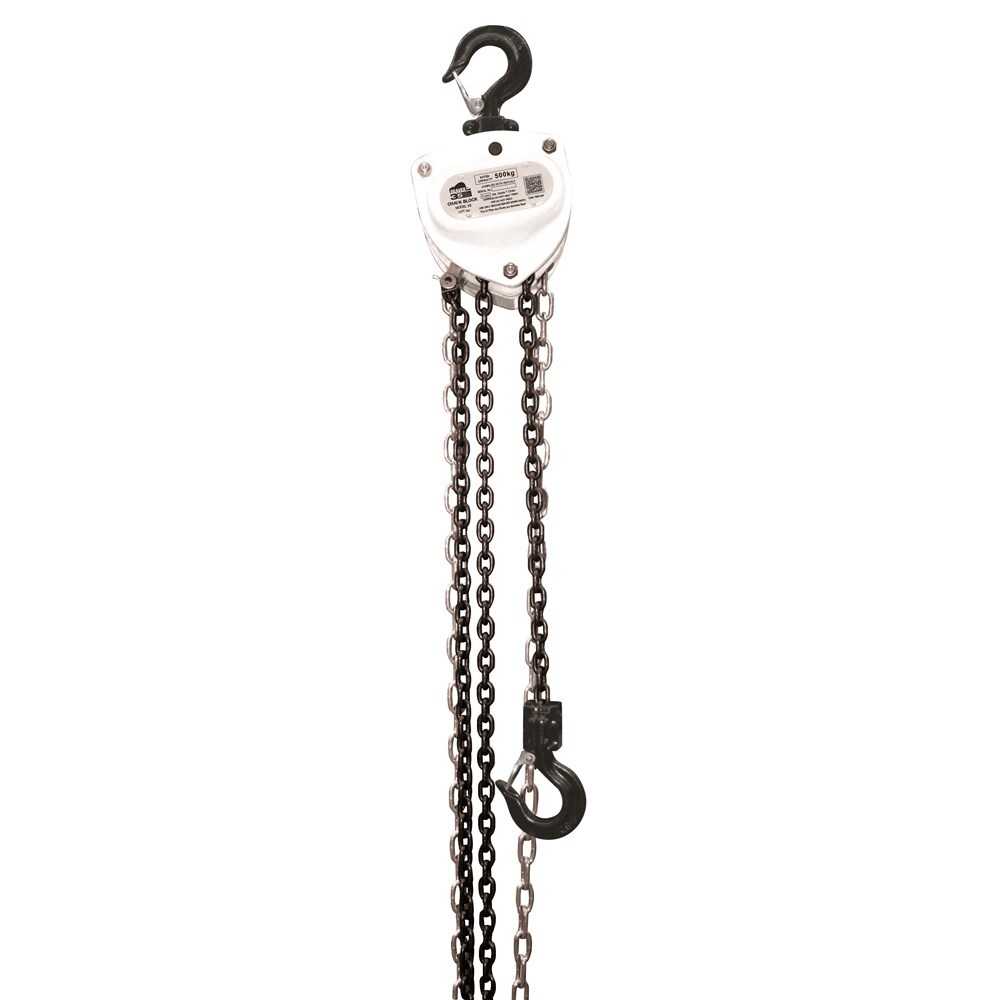

Beaver 3S Overload Industrial Chain Block

  • Beaver 3S industrial chain blocks with overload protection are designed for use on monorails, jibs fixed installations and for maintenance use.
  • These chain blocks or hoists are to be used for vertical lifts only.
  • If they are side loaded or used horizontally, jamming of the loader chain and damage to the blocks may occur.
  • The Beaver 3S industrial chain blocks features a double pawl and double roller guide for enhanced performance and reliability, as well as a unique curling design which enables the hand chain to successfully feed directly into the wheel sprocket.

Product Features

  • Full Body Steel cast construction, gear case and reinforced side covers are impact resistant.
  • Overload protection for added safety.
  • Unique design on top and bottom hooks with ball bearings and safety catches.
  • Beaver 'ID' plates and rivets are supplied in stainless steel (a non-conductive material) in order to avoid dangerous sparking.
  • Comprehensive range of spare parts are available.
  • Colour coded to match international Lifting standards.
  • Every 3S Chain Block Steel Pro 250kg is identified with its own serial number that relates directly to a test certificate.

Materials

  • Heavy duty steel
  • G80 Calibrated load chain
  • Robust cast steel housing
  • Ball bearings in top & bottom hooks

Applications

  • Mining
  • Rigging and Construction
  • General Purpose
  • Industrial use
  • Mechanical

Approved Standards

  • Complies to AS/NZS 1418.2
  • Grade 80 Calibrated Chain and marked according to ISO 3077

Specifications

  • AIMS SKU A0204019
  • Brand Beaver
  • Model Number 508053
  • Dimension A 132mm
  • Dimension B 148mm
  • Dimension C 28mm
  • Dimension H 345mm
  • Colour Code White
  • Rated Capacity 0.5T
  • Standard Lift 3m
  • Load Chain Diameter 5mm x 15mm
  • Net Weight 11kg
  • Effot on Lever To Lift Full Load 240kg
  • No. Load Chain Falls 1
  • Type Industrial Chain Block
SKU: A0204019

Beaver 3S Overload Industrial Chain Block 3m x .5T (500kg) - White

Beaver 3S Overload Industrial Chain Block

$277.08
