Description

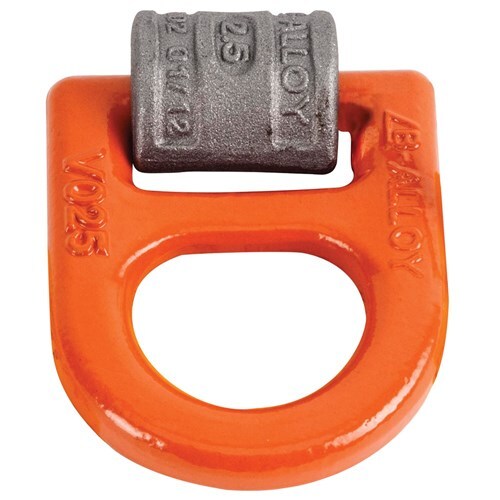

Beaver B-Alloy-V Weld-On Lifting And Lashing Ring

Beaver B-Alloy Grade 100 weld-on lifting and lashing rings are manufactured using quenched and tempered, quality alloy steel and offer a full working load limit at all angles.
These lifting and lashing rings have a durable powder coated baked enamel finish and can be welded into the required position with the aid of height lugs on a weld block.
Just some of the many applications for this innovative product include mining, offshore exploration, road or rail transport, and maritime associated industries.

Features

Extremely high strength attachment as a lifting and lashing point
The welding should only be carried out according to EN 287 or AWS Standards by an authorised welder
Functional compact design
Lifting ring has durable powder coated baked enamel finish
Welding Instructions & procedures supplied with each unit

Approved Standards

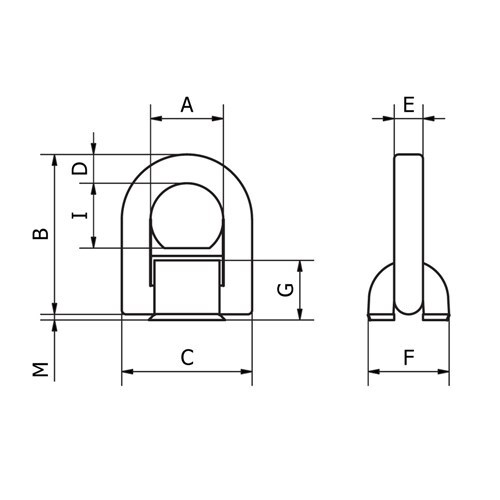

Specifications

AIMS SKU A0182709

Brand Beaver

Model Number BALPV015

C (mm) 66

A (mm) 38

F (mm) 32

E (mm) 13.5

b (mm) 79

D (mm) 14

g (mm) 25

M (mm) 2

WLL (T) 1.5

I (mm) 31

Approx Weight (kg/each) 0.4kg

Weld Size HV 5+a3 ?

Weld Length 2 x 33mm

Weld Volume ca. 1.2cm3
