Description

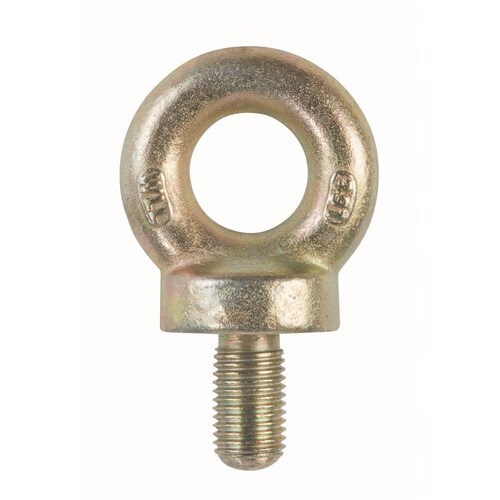

Beaver Lifting Collared Eyebolt With Metric Thread BS 4278

  • Beaver lifting eyebolts are predominately used for lifting applications. This eyebolt complies to AS 2317.
  • It is recommended that all eyebolts used for lifting be of forged steel, and be equipped with shoulders, or collars. The plain or shouderless eyebolt is fine for vertical loading but as soon as it is loaded at an angle it is subjected to bending and the load it can safely carry is reduced.

Specifications

  • AIMS SKU A0182661
  • Brand Beaver
  • Model Number 359008
  • Size (mm) 8

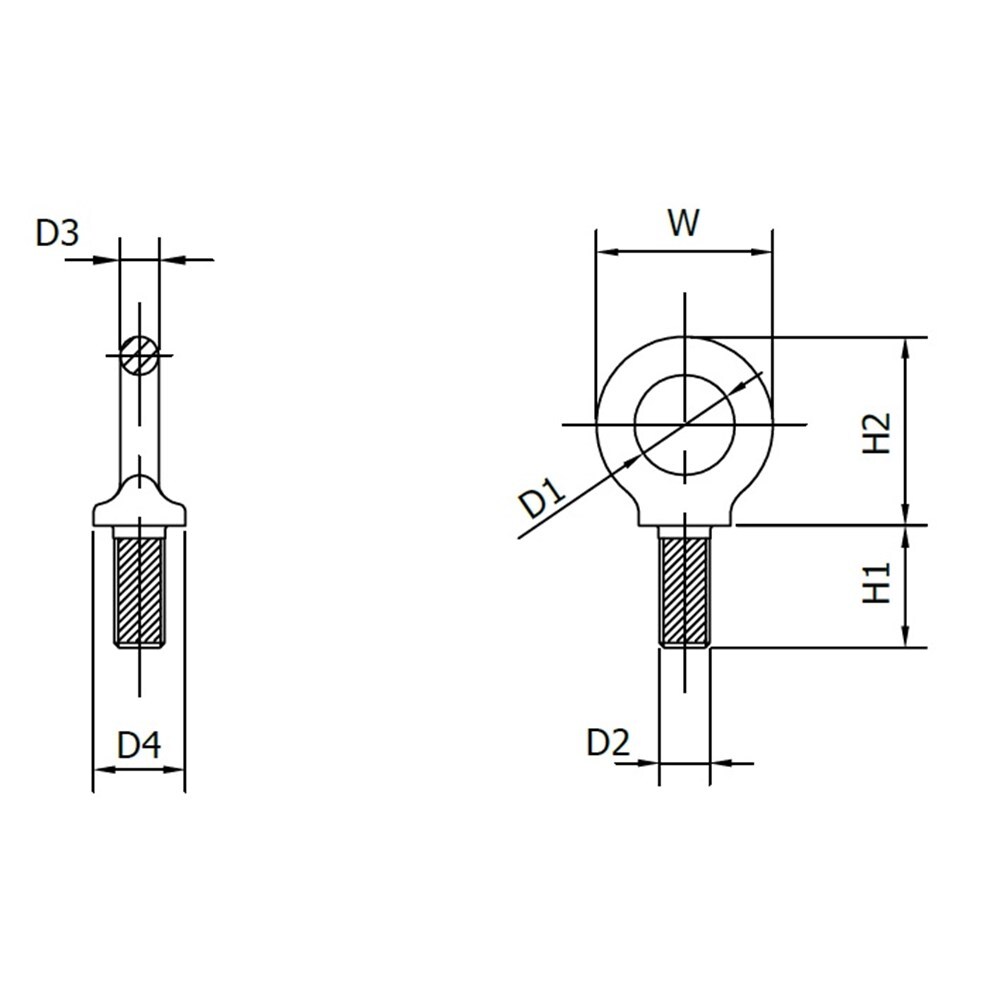

  • D1 (mm) 15
  • D2 (mm) 8
  • D3 (mm) 18
  • w (mm) 33
  • H1 (mm) 18
  • D4 (mm) 22
  • WLL (T) 0.15
  • Weight (kg/ea) 0.06
  • Transverse Load Tonne 0.04
  • H12(mm) 36
  • Type Collared Eye Bolt
  • Finish Zinc Dichromate
SKU: A0182661

Beaver Lifting Collared Eyebolt With Metric Thread BS 4278 8mm x 0.15T WLL

Beaver Lifting Collared Eyebolt W/ Metric Thread BS 4278

$3.30
