Description

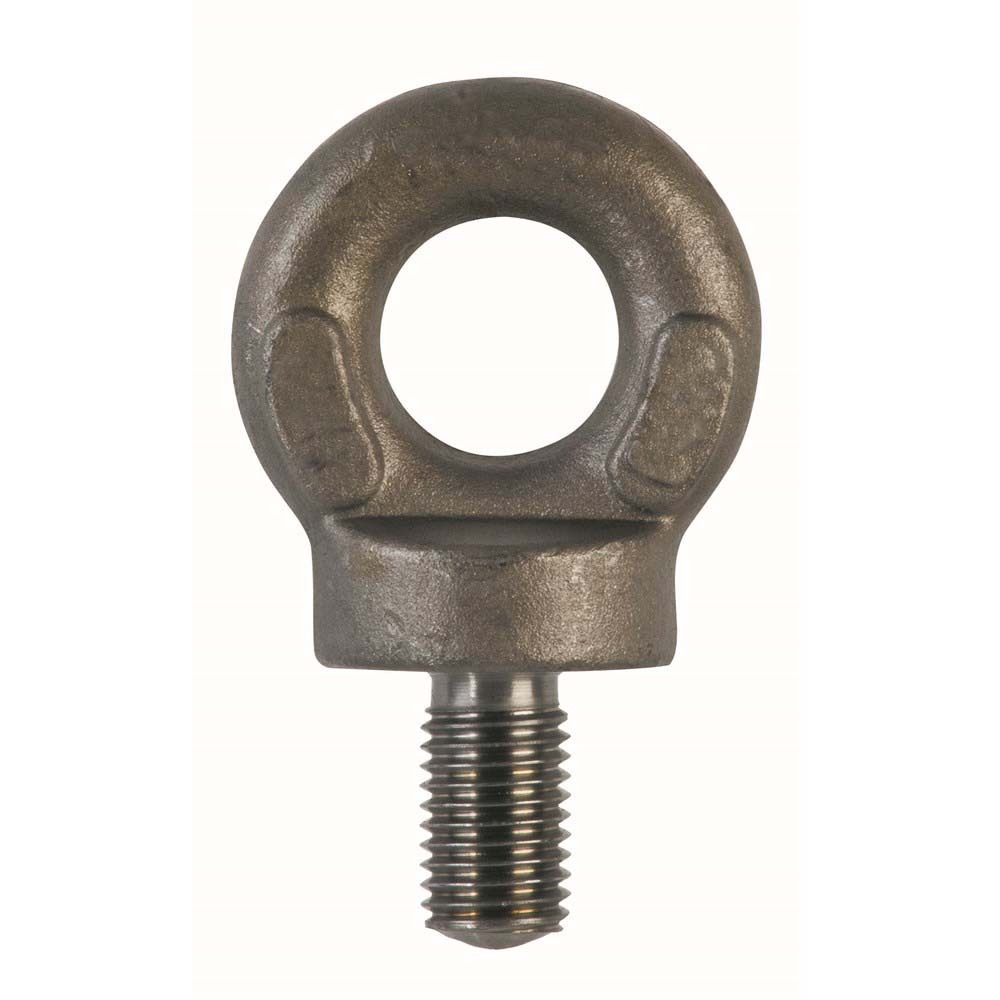

Beaver Lifting Collared Eyebolt With UNC Thread

  • Beaver lifting eyebolts and eyenuts come in a range of threads, including BSW, UNC, and Metric, and are predominately used for lifting applications.
  • This collared eyebolt complies with AS 2317.
  • It is recommended that all eyebolts used for lifting be of forged steel, and be equipped with shoulders, or collars.
  • The plain or shouderless eyebolt is fine for vertical loading but as soon as it is loaded at an angle it is subjected to bending and the load it can safely carry is reduced.
  • The Australian Standard covering collared Eyebolts is AS 2317-198.

Specifications

  • AIMS SKU A0192889
  • Brand Beaver
  • Model Number 360010
  • Finish Self Colour
  • Weight (kg) 0.06

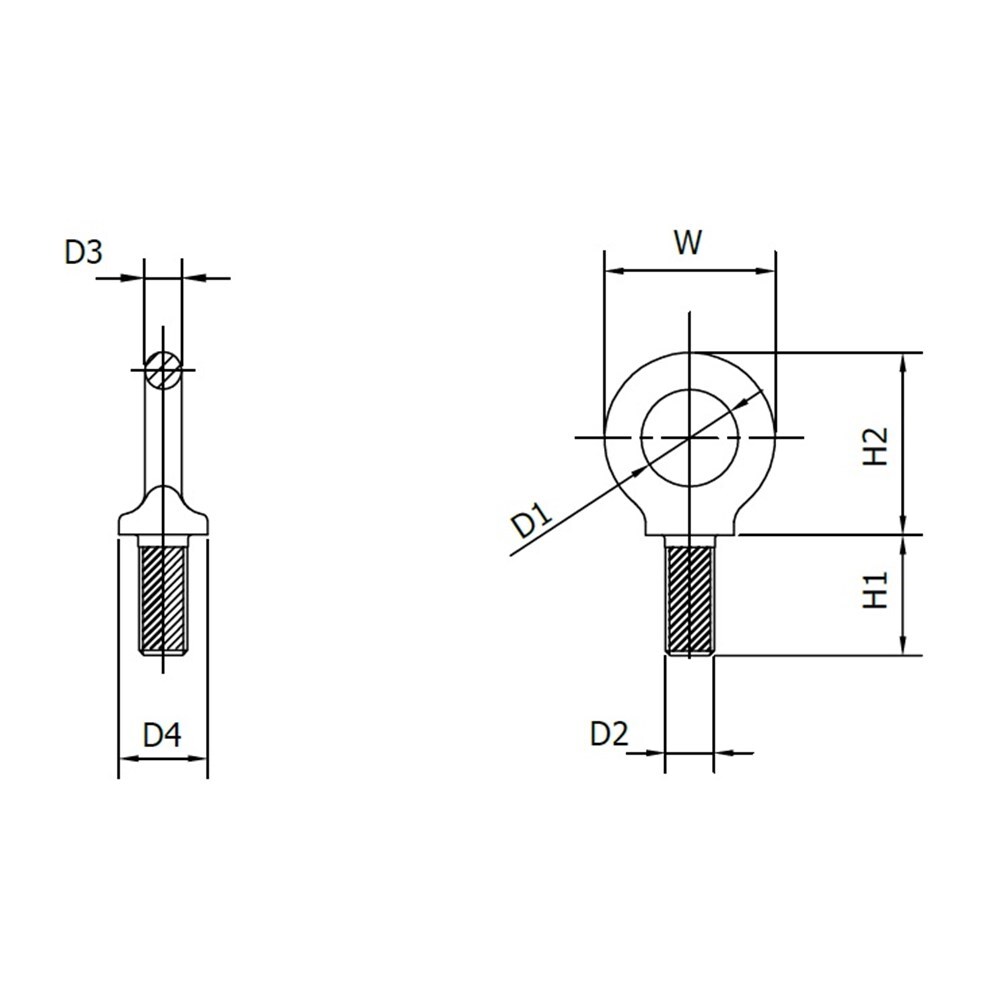

  • d1 15
  • H2 36
  • W 33
  • Size (inches) 3/8
  • D2 9.53
  • D3 9
  • WLL 0.25T
  • Transverse Load Tonne 0.06
  • H1 9
  • D4 22
  • Type Collared Eye Bolt
SKU: A0192889

Beaver Lifting Collared Eyebolts With UNC Thread 3/8" x 0.25T WLL

Beaver Lifting Collared Eyebolt With UNC Thread

$3.12
