Beaver Lifting Metric Shoulder Eye Bolt

  • Beaver lifting eyebolts are predominately used for lifting applications. This eyebolt complies to AS 2317.
  • It is recommended that all eyebolts used for lifting be of forged steel, and be equipped with shoulders, or collars. The plain or shouderless eyebolt is fine for vertical loading but as soon as it is loaded at an angle it is subjected to bending and the load it can safely carry is reduced.

Specifications

  • AIMS SKU A0182655
  • Brand Beaver
  • Model Number 359108

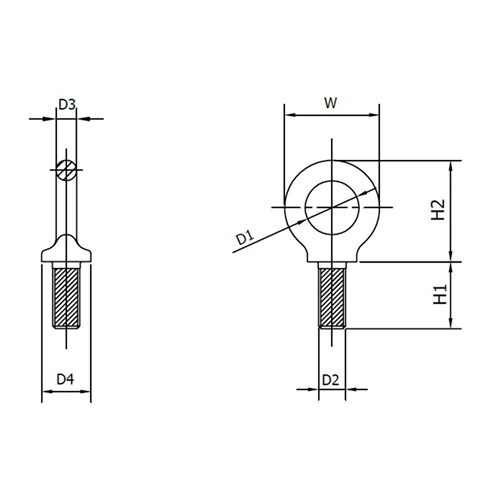

  • Size (mm) 8
  • D1 (mm) 20
  • D2 (mm) 8
  • D3 (mm) 8
  • w (mm) 36
  • H1 (mm) 13
  • D4 (mm) 20
  • WLL (T) 0.14
  • Weight (kg/ea) 0.06

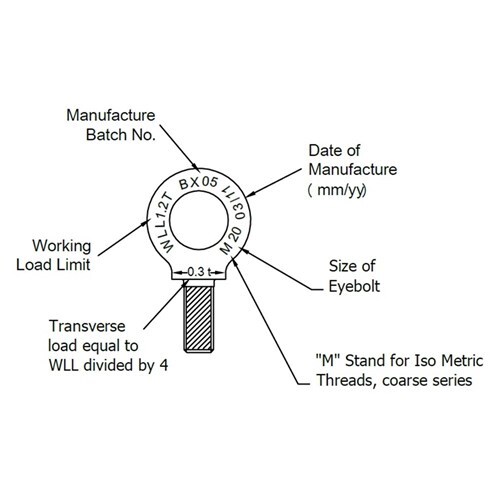

  • Transverse Load Tonne 0.03
  • H12(mm) 36
  • Type Shoulder Eye Bolt
  • Finish Zinc Dichromate
SKU: A0182655

Beaver Lifting Metric Shoulder Eye Bolt Zinc Dichromate 8mm x 0.14T WLL

Beaver Lifting Metric Shoulder Eye Bolt

$1.39
