Description

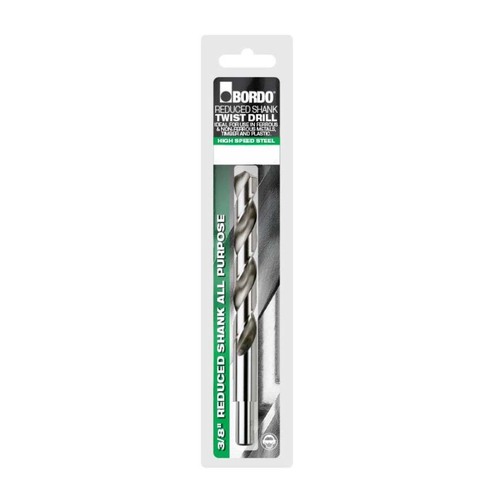

Bordo 3/8" Reduced Shank Drill Bright HSS - Imperial

  • Reduced shank HSS twist drill.
  • 118° notched point with 30° helix.
  • Notched point is a variation on the standard chisel point, providing faster starting and reduced drill wander.
  • 118° point angles are ideal for use in materials such as mild steel and cast iron.
  • The 118° point creates easily controlled chips which are wide and thin.
  • Bordo reduced shank HSS drills are ground and then a black finish is achieved by steam tempering, a thermal process resulting in a porous tool coating.
  • This surface aids chip flow and heat dissipation.
  • The drill is then ground a second time to achieve a bright finish on the shank and cutting edges.

Drill Bit Surface Treatment Bright Finish

  • A bright finish tool has no surface treatment and is supplied in the as-ground condition.
  • These tools are suitable for general purpose use, particularly for non-ferrous applications.

Drill Bit Materials High Speed Steel (HSS)

  • Bordo HSS drills are ground from premium quality M2 high speed steel.
  • HSS can withstand higher operating temperatures than carbon steel without losing its temper (hardness).
  • This property allows HSS to cut faster than high carbon steel, hence the name high speed steel.
  • M2 HSS is an alloyed steel in the tungsten-molybdenum series which typically contains 4% Chromium, 5% Molybdenum, 6% Tungsten, 2% Vanadium and 1% Carbon(approx. by % wt).
  • The material is also subject to high temperature heat treatment to complete the process.
  • HSS has a very high wear resistance, a bending strength up to 4700MPa with high toughness and themoplasticity.
  • HSS drills are ideal for general purpose use in a wide variety of ferrous and non-ferrous metals, timber, and plastic.

Specifications

  • AIMS SKU A0200411
  • Brand Bordo
  • Model Number 2646-27/64
  • Barcode Number 9326518061205
  • Diameter (inch) 27/64
  • Flute Length (mm) 100
  • Overall Length (OAL) mm 137
  • Shank Diameter 3/8"
  • Diameter in (mm) 10.72
  • Spindle Speed Stainless Steel RPM 357
  • Spindle Speed Tool Steel RPM 535
  • Spindle Speed Cast Iron RPM 713
  • Spindle Speed Malleable Iron RPM 802
  • Spindle Speed Med. Carbon Steel RPM 891
  • Spindle Speed Aluminium/Brass RPM 1812
  • Spindle Speed Wood/Plastic RPM 2704
  • Flute Type 30° Helix
  • Feed per Revolution (mm) 0.21
  • Spindle Speed Free Cutting Stl RPM 1278
  • Type Reduced Shank Drill Bit
  • System of Measurement Imperial
  • Material HSS
  • Surface Finish Bright
  • Type of Point 118° Notched Point
SKU: A0200411

Bordo 2646-27/64 Reduced Shank Drill Bit 27/64 x 3/8" - Bright HSS

Bordo 3/8" Reduced Shank Drill Bright HSS - Imperial

$14.56
RRP $31.00
SAVE $16.44 (53%)
