Description

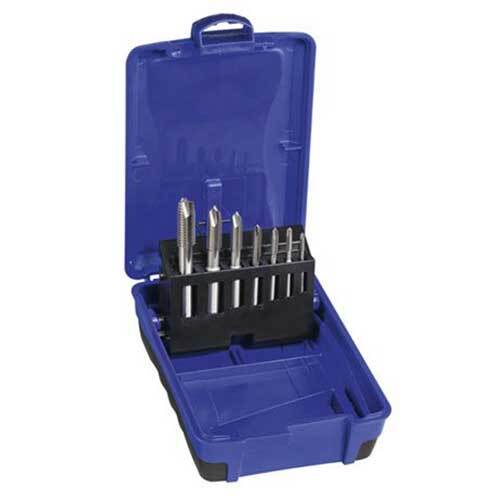

Metric Spiral Point Tap Set

  • M3 - M12 Metric Coarse Spiral Point Tap Set.

About Metric Coarse

  • Angle of thread is 60 degrees.
  • The crest is flat and the thread has clearance at the root allowing external thread and internal thread to engage well.
  • Larger root radius and lower thread height enable easy screw thread processing and increase thread screw strength.
  • The major diameter of external thread and pitch are specified by a simple numerical value (most commonly measured in millimetres).

About Spiral Point  Taps

  • Are used for machine tapping blind and through holes where there is sufficient clearance to accomodate chips.
  • Manufactured from HSS-Co5 this modern design tap uses straight flutes supplemented by angular cutting faces at the point to produce a fine finish on the threads.
  • Shallower flutes achieve a stronger cross section allowing the tap to withstand greater cutting forces.

Contents

Title Qty
3 x 0.5mm HSS Cobalt MC Spiral Point Tap 1
4 x 0.7mm HSS Cobalt MC Spiral Point Tap 1
5 x 0.8mm HSS Cobalt MC Spiral Point Tap 1
6 x 1mm HSS Cobalt MC Spiral Point Tap 1
8 x 1.25mm HSS Cobalt MC Spiral Point Tap 1
10 x 1.5mm HSS Cobalt MC Spiral Point Tap 1
12 x 1.75mm HSS Cobalt MC Spiral Point Tap 1

Specifications

  • AIMS SKU A0145357
  • Brand Bordo
  • Model Number 3120-S1
  • Barcode Number 9326518168430
  • Type Tap Set
  • System of Measurement Metric
  • Material High Speed Steel Cobalt
SKU: A0145357

Bordo 3120-S1 Metric Spiral Point Tap Set M3 - M12 HSS-Co, 7pieces

Metric Spiral Point Tap Set

$221.29
RRP $329.73
SAVE $108.44 (33%)
