Description

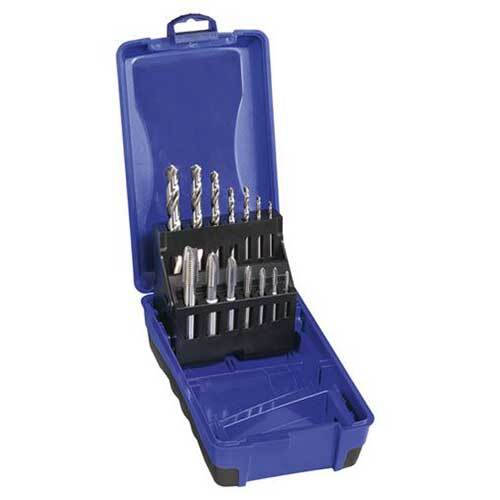

UNC Spiral Point Tap and Drill Set

  • 6G - 1/2" UNC Spiral Point Tap and Drill Set.

About UNC Unified National Coarse

  • This thread form was introduced in 1948 as an attempt to standardise thread forms in the USA Canada and the UK.
  • The thread profile of UNC is 60 degrees the same as for metric threads and is described in the JIS B0206 standard.
  • The thread is described by its major diameter and the number of threads per inch of length (TPI).
  • This thread series is commonly used in the mass production of bolts screws and nuts.
  • It is used for threading into lower tensile strength materials (bronze brass aluminium and plastics) to obtain the best resistance to stripping of the internal thread.
  • It is also used on quick assembly or disassembly or if corrosion or slight damage is possible.

About Spiral Point Tap

  • Are used for machine tapping blind and through holes where there is sufficient clearance to accomodate chips.
  • Manufactured from HSS-Co5 this modern design tap uses straight flutes supplemented by angular cutting faces at the point to produce a fine finish on the threads.
  • Shallower flutes achieve a stronger cross section allowing the tap to withstand greater cutting forces.
  • M2-HSS premium quality jobber drills in tapping sizes to suit Spiral Point taps.

Contents

Title Qty
6G x 32 HSS Cobalt UNC Spiral Point Tap 1
8G x 32 HSS Cobalt UNC Spiral Point Tap 1
10G x 24 HSS Cobalt UNC Spiral Point Tap 1
1/4" x 20 HSS Cobalt UNC Spiral Point Tap 1
5/16" x 18 HSS Cobalt UNC Spiral Point Tap 1
3/8" x 16 HSS Cobalt UNC Spiral Point Tap 1
1/2" x 13 HSS Cobalt UNC Spiral Point Tap 1
2.9mm Bright HSS Jobber 1
3.5mm Bright HSS Jobber 1
3.9mm Bright HSS Jobber 1
5.1mm Bright HSS Jobber 1
6.6mm Bright HSS Jobber 1
8mm Bright HSS Jobber 1
10.8mm Bright HSS Jobber 1

Specifications

  • AIMS SKU A0145366
  • Brand Bordo
  • Model Number 3132-S2
  • Barcode Number 9326518162315
  • Type Tap and Drill
  • System of Measurement UNC
  • Material High Speed Steel Cobalt
SKU: A0145366

Bordo 3132-S2 UNC Spiral Point Tap and Drill Set 6G - 1/2" HSS-Co, 14pcs

UNC Spiral Point Tap and Drill Set

$290.43
RRP $432.75
SAVE $142.32 (33%)
