Description

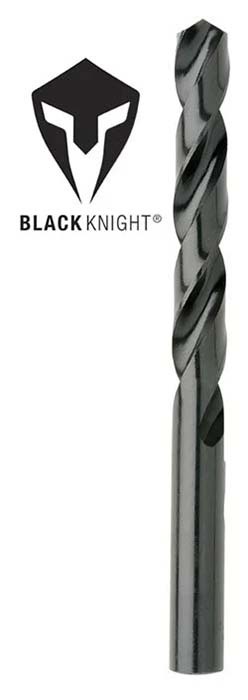

Bordo Black HSS Jobber Drill Bit Metric - 2003 Series

  • Bordo Black Knight M2-HSS Twist Drills.
  • DIN338
  • 118° Split Point (crankshaft point)
  • Split point is self centering and reduces the need for end thrust.
  • Friction at workpiece is reduced.
  • 118° point angles are ideal for use in materials such as mild steel and cast iron.
  • The 118° point creates easily controlled chips which are wide and thin.
  • Black Finish Twist Drills (also called blue finish) achieve their distinctive colour by steam tempering, a thermal process resulting in a porous tool coating.
  • This surface helps to keep lubricant on the tool, particularly important on the cutting edges, thus reducing friction and cold welding. The result is increased tool life.
  • Black finish tools are generally recommended for ferrous applications where the oxide layer aids chip flow and heat dissipation.

Specifications

  • AIMS SKU A0200210
  • Brand Bordo
  • Model Number 2003-1.00S
  • Barcode Number 9326518179320
  • Diameter (mm) 1
  • Flute Length (mm) 12
  • Spindle Speed Wood/Plastic RPM 28984
  • Spindle Speed Malleable Iron RPM 8600
  • Spindle Speed Stainless Steel RPM 3822
  • Spindle Speed Free Cutting Stl RPM 13696
  • Spindle Speed Aluminium/Brass RPM 19429
  • Spindle Speed Cast Iron RPM 7644
  • Overall Length (OAL) mm 34
  • Feed per Revolution (mm) 0.04
  • Spindle Speed Med. Carbon Steel RPM 9555
  • Spindle Speed Tool Steel RPM 5733
  • Type Jobber Drill Bit
  • System of Measurement Metric
SKU: A0200210

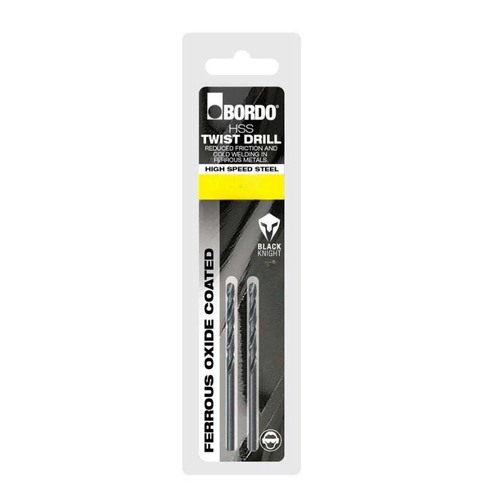

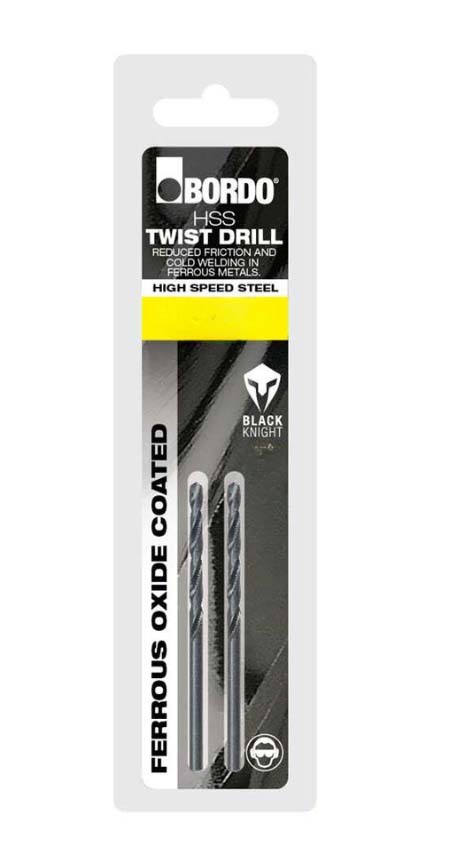

Bordo 1mm Black HSS Jobber Drill Bit Clam Shell - 2003-1.00S - 2/Pack

Bordo Black HSS Jobber Drill Bit Metric - 2003 Series
