Description

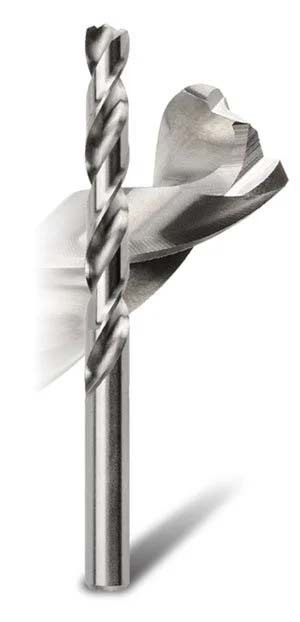

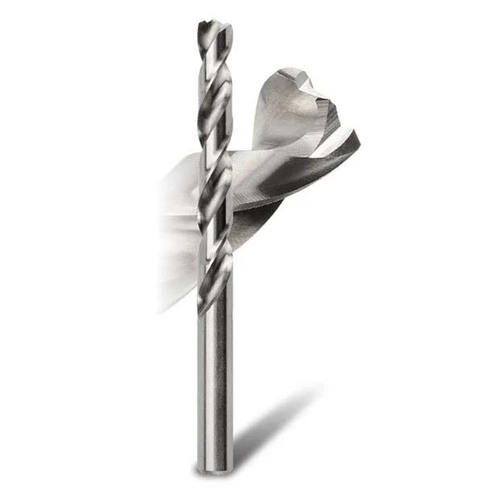

Bordo Delta Point Bright HSS Jobber Drill Bit

  • Delta Point Bright HSS Twist.
  • Bordo Metric Delta Point M2-HSS Twist Drills.
  • DIN338.
  • Delta Point drills have a multi-faceted cutting tip.
  • Rather than try and modify existing point types, or tweak the grind angles, Delta Point tip design required a revolutionary re-think of drill tip function.
  • The overall length of the cutting edge significantly exceeds that of conventional drills.
  • This means more edge doing the cutting and the results are simply extraordinary.
  • Drilling times for a range of split point and Delta Point drills consistently showed that Delta Point bits were twice as fast in mild steel.
  • During independent lifetime testing Delta point drill bits averaged 609 holes in 20mm mild steel, ten times more holes than split point drills.
  • Drills Faster lasts longer.
  • Bright Finish Twist Drills have no surface treatment and are supplied in the as-ground condition.
  • These tools are suitable for general purpose use, particularly for non-ferrous applications.

Specifications

  • AIMS SKU A0198531
  • Brand Bordo
  • Model Number 2015-1.00
  • Barcode Number 9326518149231
  • Point Type Delta Point
  • Diameter (mm) 1
  • Flute Length (mm) 12
  • Overall Length (OAL) mm 34
  • Spindle Speed Stainless Steel RPM 3822
  • Spindle Speed Tool Steel RPM 5733
  • Spindle Speed Cast Iron RPM 7644
  • Spindle Speed Malleable Iron RPM 8600
  • Spindle Speed Med. Carbon Steel RPM 9555
  • Spindle Speed Aluminium/Brass RPM 19429
  • Spindle Speed Wood/Plastic RPM 28984
  • Flute Type 30° Helix
  • Feed per Revolution (mm) 0.04
  • Spindle Speed Free Cutting Stl RPM 13696
  • Type Jobber Drill Bit
  • Material M2-HSS
  • Surface Finish Bright
SKU: A0198531

Bordo 1mm Delta Point Bright HSS Jobber Drill Bit - Pack of 10

Bordo Delta Point Bright HSS Jobber Drill Bit

$31.01
RRP $57.86
SAVE $26.85 (46%)
