Description

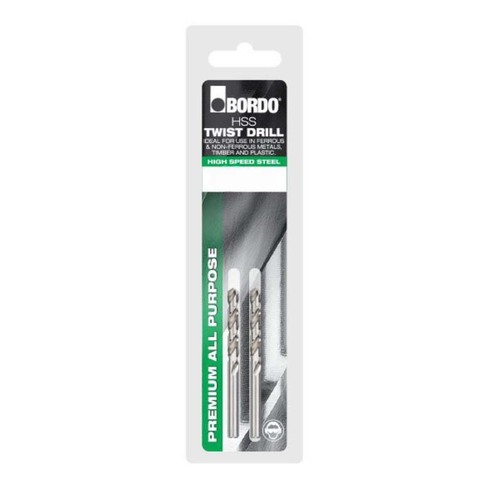

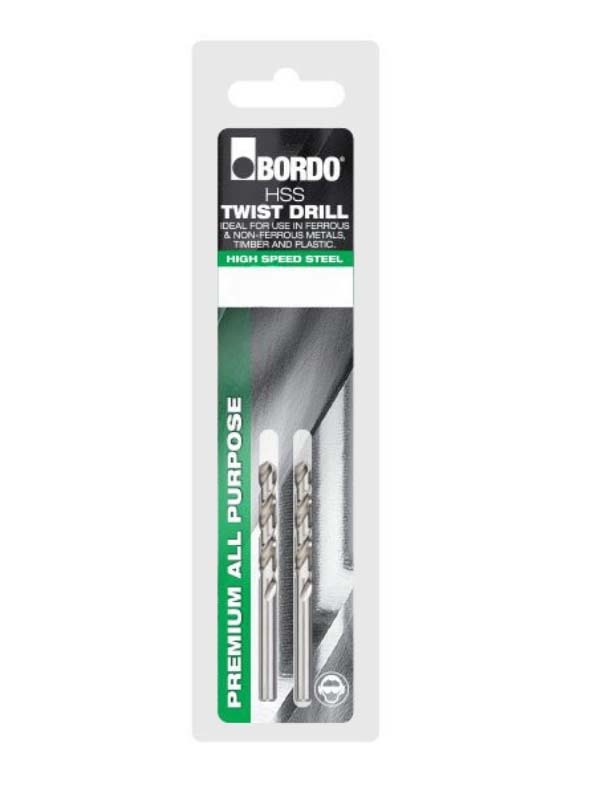

Bordo HSS Bright Jobber Drill Bit - 2006 Series

Bordo Fractional Quick Silver M2-HSS Twist Drills.
ANSI B94-11
118° Split Point (crankshaft point).
Split point is self centering and reduces the need for end thrust. Friction at workpiece is reduced.
118° point angles are ideal for use in materials such as mild steel and cast iron.
The 118° point creates easily controlled chips which are wide and thin.
Bright Finish Twist Drills have no surface treatment and are supplied in the as-ground condition.
These tools are suitable for general purpose use, particularly for non-ferrous applications.

About 118° Split Point

118° Split Point (crankshaft point) Split point is self centering and reduces the need for end thrust. Friction at workpiece is reduced.
118° point angles are ideal for use in materials such as mild steel and cast iron.
The 118° point creates easily controlled chips which are wide and thin.

Specifications

AIMS SKU A0200626

Brand Bordo

Model Number 2006-11/64S

Barcode Number 9326518035695

Diameter (inch) 11/64

Flute Length (mm) 54

Overall Length (OAL) mm 83

Diameter in (mm) 4.37

Spindle Speed Stainless Steel RPM 875

Spindle Speed Tool Steel RPM 1312

Spindle Speed Cast Iron RPM 1749

Spindle Speed Malleable Iron RPM 1968

Spindle Speed Med. Carbon Steel RPM 2186

Spindle Speed Aluminium/Brass RPM 4446

Spindle Speed Wood/Plastic RPM 6632

Flute Type 30° Helix

Type of Point 118° Split Point

Feed per Revolution (mm) 0.1

Spindle Speed Free Cutting Stl RPM 3134
