Description

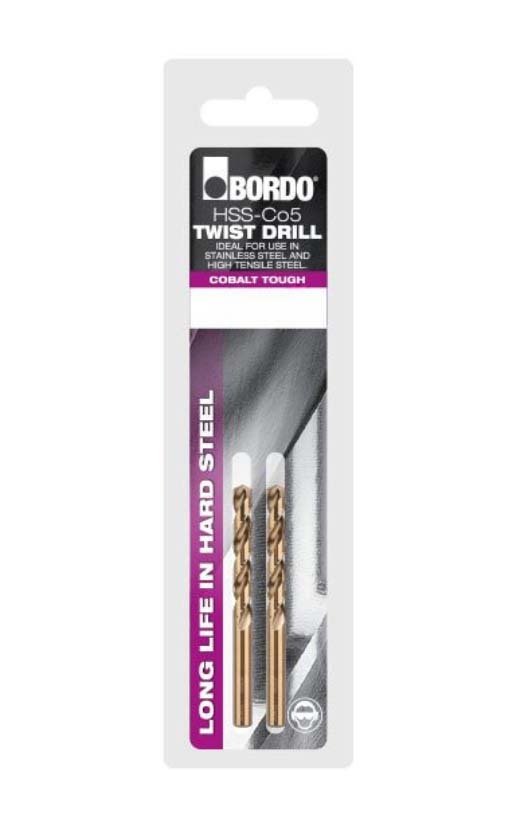

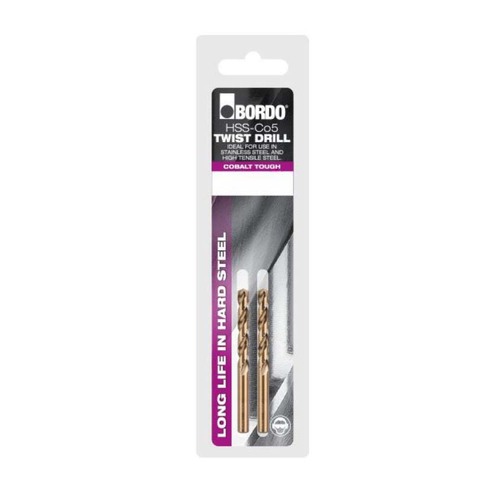

Bordo HSS Cobalt Jobber Drill Bit - 2010 Series

Bordo Fractional Cobalt Tough HSS-Co5 Twist Drills.
ANSI B94-11
135° Split Point (crankshaft point).
Split point is self centering and the short distance from the drill axis to the outer corners results in faster penetration, reducing the need for end thrust.
The 135° point should be used to cut harder steel materials especially in deep hole applications.
In these situations it will produce thicker chips minimising work hardening of the cavity.
Faster penetration reduces abrasion and friction along the cutting edges.
Cobalt HSS Twist drills are extremely hard and provide superior performance and increased tool life especially in stainless steel and high tensile steel.
Bronze Finish (gold oxide) surface treatment. The metallic brown coloured low temperature temper treatment is normally only used on cobalt tools for identification purposes.

Specifications

AIMS SKU A0200668

Brand Bordo

Model Number 2010-11/64S

Barcode Number 9326518036234

Diameter (inch) 11/64

Flute Length (mm) 54

Overall Length (OAL) mm 83

Diameter in (mm) 4.37

Spindle Speed Stainless Steel RPM 1050

Spindle Speed Tool Steel RPM 1574

Spindle Speed Cast Iron RPM 2099

Spindle Speed Malleable Iron RPM 2361

Spindle Speed Med. Carbon Steel RPM 2624

Spindle Speed Aluminium/Brass RPM 5335

Spindle Speed Wood/Plastic RPM 7959

Flute Type 30° Helix

Type of Point 135° Split Point

Feed per Revolution (mm) 0.12

Spindle Speed Free Cutting Stl RPM 3761
