Description

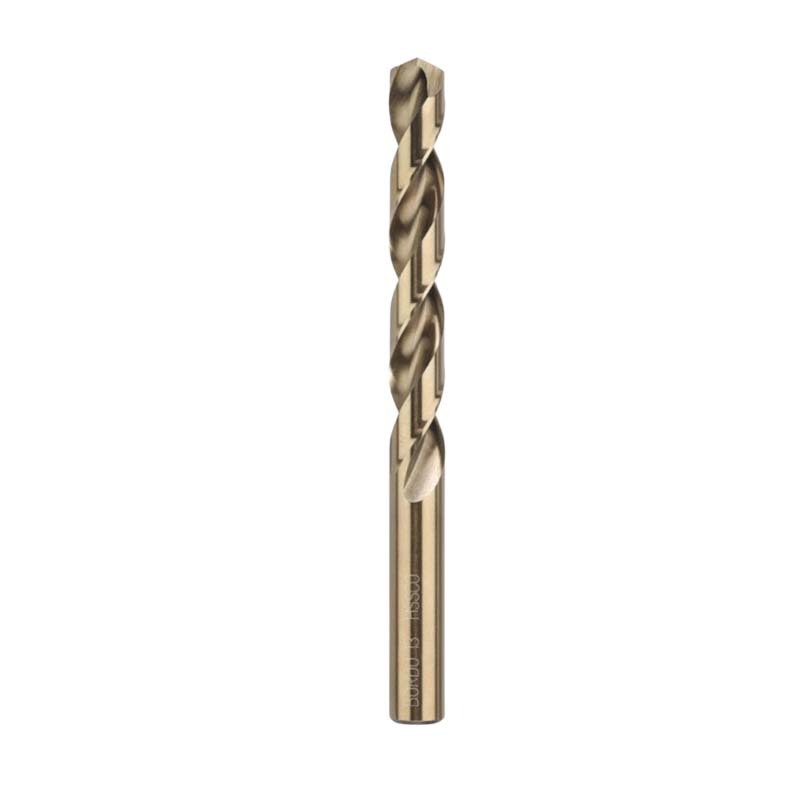

Bordo HSS Cobalt Jobber Drill Bit - 2011

DIN338
HSS Cobalt Twist Drill
Bordo Metric Cobalt Tough HSS-Co5 Twist Drills.
135º Split Point (crankshaft point).
Split point is self centering and the short distance from the drill axis to the outer corners results in faster penetration, reducing the need for end thrust.
The 135° point should be used to cut harder steel materials especially in deep hole applications.
In these situations it will produce thicker chips minimising work hardening of the cavity.
Faster penetration reduces abrasion and friction along the cutting edges.
Cobalt HSS Twist drills are extremely hard and provide superior performance and increased tool life especially in stainless steel and high tensile steel.
Bronze Finish (gold oxide) surface treatment. The metallic brown coloured low temperature temper treatment is normally only used on cobalt tools for identification purposes.

About 135° Split Point (crankshaft point)

The split point is self centering and the short distance from the drill axis to the outer corners results in faster penetration, reducing the need for end thrust.
The 135° point should be used to cut harder steel materials especially in deep hole applications. In these situations it will produce thicker chips minimising work hardening of the cavity.
Faster penetration reduces abrasion and friction along the cutting edges.
Size 1.00mm, 1.50mm and 1/16" are 135° standard chisel point.
