Description

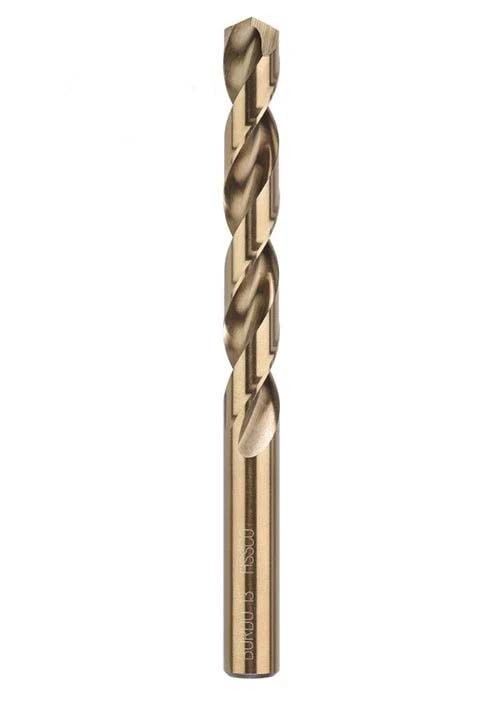

Bordo HSS Cobalt Jobber Drill Bit

  • HSS Cobalt Twist.
  • Bordo Fractional Cobalt Tough HSS-Co5 Twist Drills.
  • ANSI B94-11
  • 135º Split Point (crankshaft point).
  • Split point is self centering and the short distance from the drill axis to the outer corners results in faster penetration, reducing the need for end thrust.
  • The 135º point should be used to cut harder steel materials especially in deep hole applications.
  • In these situations it will produce thicker chips minimising work hardening of the cavity.
  • Faster penetration reduces abrasion and friction along the cutting edges.
  • Cobalt HSS Twist drills are extremely hard and provide superior performance and increased tool life especially in stainless steel and high tensile steel.
  • Bronze Finish (gold oxide) surface treatment. The metallic brown coloured low temperature temper treatment is normally only used on cobalt tools for identification purposes.

About 135° Split Point

  • 135° Split Point (crankshaft point).
  • Split point is self centering and the short distance from the drill axis to the outer corners results in faster penetration, reducing the need for end thrust.
  • The 135° point should be used to cut harder steel materials especially in deep hole applications.
  • In these situations it will produce thicker chips minimising work hardening of the cavity. Faster penetration reduces abrasion and friction along the cutting edges.

Specifications

  • AIMS SKU A0198616
  • Brand Bordo
  • Model Number 2010-5/64
  • Barcode Number 9326518036715
  • Point Type 135° Split Point
  • Diameter (inch) 5/64
  • Flute Length (mm) 25
  • Overall Length (OAL) mm 51
  • Diameter in (mm) 1.98
  • Spindle Speed Stainless Steel RPM 2316
  • Spindle Speed Tool Steel RPM 3475
  • Spindle Speed Cast Iron RPM 4633
  • Spindle Speed Malleable Iron RPM 5212
  • Spindle Speed Med. Carbon Steel RPM 5791
  • Spindle Speed Aluminium/Brass RPM 11775
  • Spindle Speed Wood/Plastic RPM 17566
  • Flute Type 30° Helix
  • Feed per Revolution (mm) 0.07
  • Spindle Speed Free Cutting Stl RPM 8300
  • Type Jobber Drill Bit
  • Material Cobalt HSS-Co5
  • Surface Finish Bronze
SKU: A0198616

Bordo 5/64" HSS Cobalt Jobber Drill Bit 2010-5/64 - Pack of 10

Bordo HSS Cobalt Jobber Drill Bit

$50.05
RRP $106.48
SAVE $56.43 (53%)
