Description

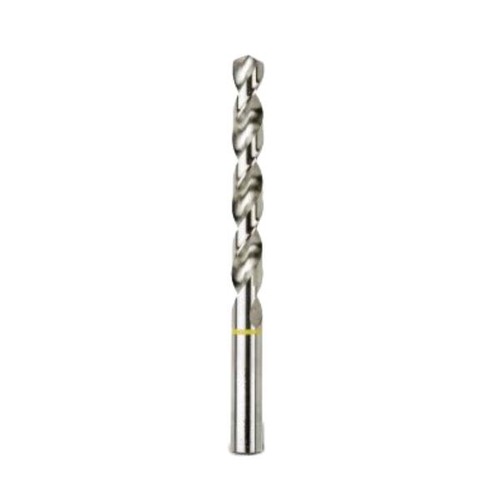

Bordo HSS Yellow Band Jobber Drill Bit

Bordo Metric Yellow Band HSS Twist Drills for Aluminium and its alloys.
DIN338.
130° web thinned point with two helical flutes with 35 degrees of helix angle.
The alloying elements which achieve varying Aluminium Alloys have an effect on the machining properties of these materials.
This generally creates a difficult long chip formation and material which has tendencies to stick to the tool, placing a unique set of demands on tooling.
Yellow Band Series contends with these difficulties.
For machining materials with Hardness < 200 HB: Tensile Strength <700 N/mm².

About 130° Thinned

The thinned point reduces end thrust and optimizes centre cutting efficiency with chisel strength.

About Drill Bit Surface Treatment

Bright Finish a bright finish tool has no surface treatment and is supplied in the as-ground condition.
These tools are suitable for general-purpose use, particularly for non-ferrous applications.

Specifications

AIMS SKU A0193885

Brand Bordo

Model Number 2054-2.00

Barcode Number 9326518095699

Diameter (mm) 2

Flute Length (mm) 24

Overall Length (OAL) mm 49

Surface Finish Bright

Flute Type 33° Helix

Type of Point 130° Web Thinned

Feed per Revolution (mm) 0.05

Aluminium Alloy Cast, Low Si <5% 30-40 m/min (Cutting Speed)

Aluminium Alloy Cast, Si >10% 23-35 m/min (Cutting Speed)

Aluminium Alloy Wrought & Extruded 50-60 m/min (Cutting Speed)

Aluminium Alloy Wrought & Treated 35-50 m/min (Cutting Speed)

Copper - Brass, Bronze 35-45 m/min (Cutting Speed)

Cutting Speed Copper - Brass, Soft 40-50 m/min

Cutting Speed Copper - Pure <100 35-55 m/min
