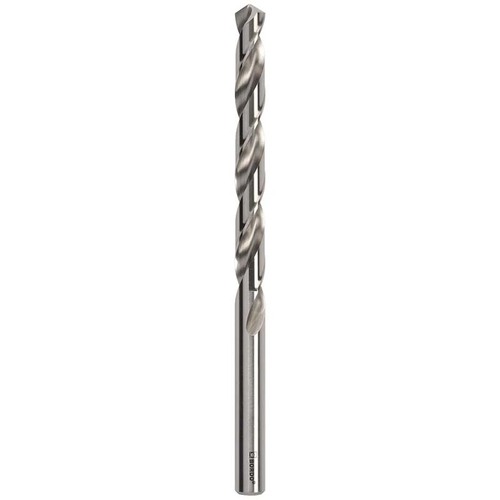

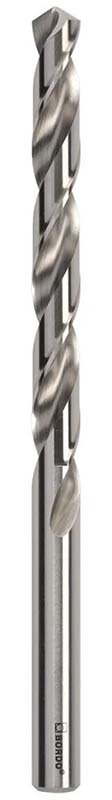

Bordo Long Series HSS Bright Drill Bit (2505) - Imperial

Description

Bordo Long Series HSS Bright Drill Bit (2505) - Imperial

ANSI B94-11
118° split point with 30° helix.
Split point is self centering and reduces the need for end thrust. Friction at workpiece is reduced.
118° point angles are ideal for use in materials such as mild steel and cast iron.
The 118° point creates easily controlled chips which are wide and thin.
Bright Finish Twist Drills have no surface treatment and are supplied in the as-ground condition.
These tools are suitable for general purpose use, particularly for non-ferrous applications.

Specifications

AIMS SKU A0199728

Brand Bordo

Model Number 2505-5/64

Barcode Number 9326518173298

Diameter (inch) 5/64

Flute Length (mm) 51

Flute Type 30° Helix

Spindle Speed Med. Carbon Steel RPM 4826

Spindle Speed Tool Steel RPM 2895

Surface Finish Bright

Feed per Revolution (mm) 0.05

Spindle Speed Wood/Plastic RPM 14638

Spindle Speed Malleable Iron RPM 4343

Spindle Speed Stainless Steel RPM 1930

Overall Length (OAL) mm 95.5

Type of Point 118° Split Point

Spindle Speed Aluminium/Brass RPM 9812

Spindle Speed Cast Iron RPM 3861

Diameter in (mm) 1.98

Spindle Speed Free Cutting Stl RPM 6917

Type Long Drill Bit
Material HSS
