Description

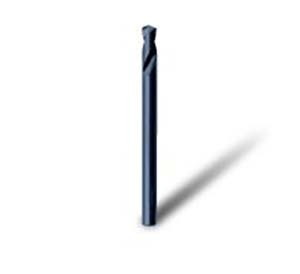

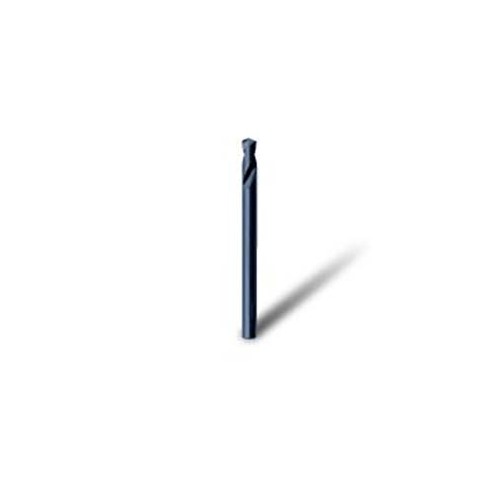

Bordo HSS Black Single Ended Panel Drill Bit

  • 135° Split Point (crankshaft point).
  • Split point is self centering reducing the need for end thrust.
  • The 135° point provides superior performance when drilling harder steel materials.
  • In most situations it will produce thicker chips minimising work hardening of the cavity.
  • Faster penetration reduces abrasion and friction along the cutting edges.
  • Black Finish Drills (also called blue finish) achieve their distinctive colour by steam tempering, a thermal process resulting in a porous tool coating.
  • This surface helps to keep lubricant on the tool, particularly important on the cutting edges, thus reducing friction and cold welding.
  • The result is increased tool life.
  • Black finish tools are generally recommended for ferrous applications where the oxide layer aids chip flow and heat dissipation.

Specifications

  • AIMS SKU A0205509
  • Brand Bordo
  • Model Number 2344-20
  • Barcode Number 9326518037422
  • Point Type 135° Split Point
  • Overall Length (OAL) mm 55
  • Diameter in (mm) 4.09
  • Flute (mm) 14
  • Rivet Diameter (in) 5/32
  • Diameter (Gauge) 20
  • End Type Single Ended
  • Type Panel Drill Bit
  • Material HSS
  • Surface Finish Black
SKU: A0205509

Bordo No.20 HSS Black Single Ended Panel Drill Bit - Pack of 10

Bordo HSS Black Single Ended Panel Drill Bit

$24.34
RRP $51.81
SAVE $27.47 (53%)
