Description

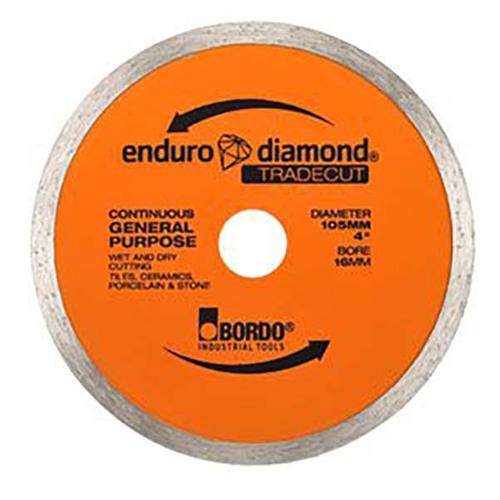

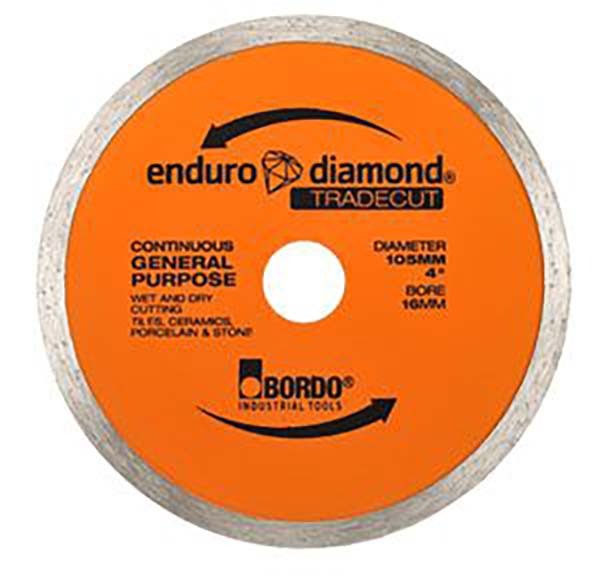

Bordo TradeCut Continous Diamond General Purpose Blade

  • Tradecut Diamond Saw Continuous Rim.
  • Continuous rim blades have softer bonds for cutting hard materials such as tile, porcelain, granite, stone, glass, and other materials that can chip easily.
  • These blades don't have individual segments but instead have a solid, continuous rim or edge.
  • Most continuous rim blades are designed for wet cutting applications, providing the smoothest, chip free cuts.
  • Diamond blades do not cut, they actually grind through the material by exposing new diamond at the right moment just before the old diamond wears away.
  • The newly exposed diamonds again will wear, chip, or break out of the metal bond in the segment, while the metal bond gradually wears away to expose new diamond.
  • This process is repeated over and over until there is no diamond remaining and the blade is worn out.
  • Ideally and to get the maximum life out of a diamond blade, the metal should wear away at just the right time to expose new diamond for optimum cutting performance.
  • If the metal wears away too quickly, the diamonds are exposed to soon and get torn out of the metal bond before they are fully worn. The result is a very short blade life.
  • If the metal wears away too slowly, the diamonds wear away before new diamond is exposed. This is often referred to as a 'glazed blade'.
  • Without exposed diamond the blade will not cut.
  • Abrasive materials like green concrete and asphalt will wear the metal bond very fast, so blades for these materials have a much harder metal bond to resist this abrasion.
  • The opposite occurs on a hard clay paver the clay paver is not abrasive enough to wear the metal bond fast enough to expose fresh diamond, therefore a different and much softer alloy is needed for cutting these types.
  • The single most important factor for the life of the blade is to match it to the job application and the type of equipment it is being used on.

Specifications

  • AIMS SKU A0199843
  • Brand Bordo
  • Model Number 7471-105
  • Barcode Number 9326518171522
  • Diameter (mm) 105
  • Maximum Speed (RPM) 15000
  • Segment Height (mm) 5
  • Bore (mm/inch) 16
  • Diameter in (inch) 4
  • Rim Type Continuous
  • Ideal For Continuous Rim General Purpose
  • Type Diamond Saw Blade
SKU: A0199843

Bordo 105mm TradeCut Continous Diamond General Purpose Blade

Bordo TradeCut Continous Diamond General Purpose Blade

$16.61
RRP $20.63
SAVE $4.02 (19%)
