Description

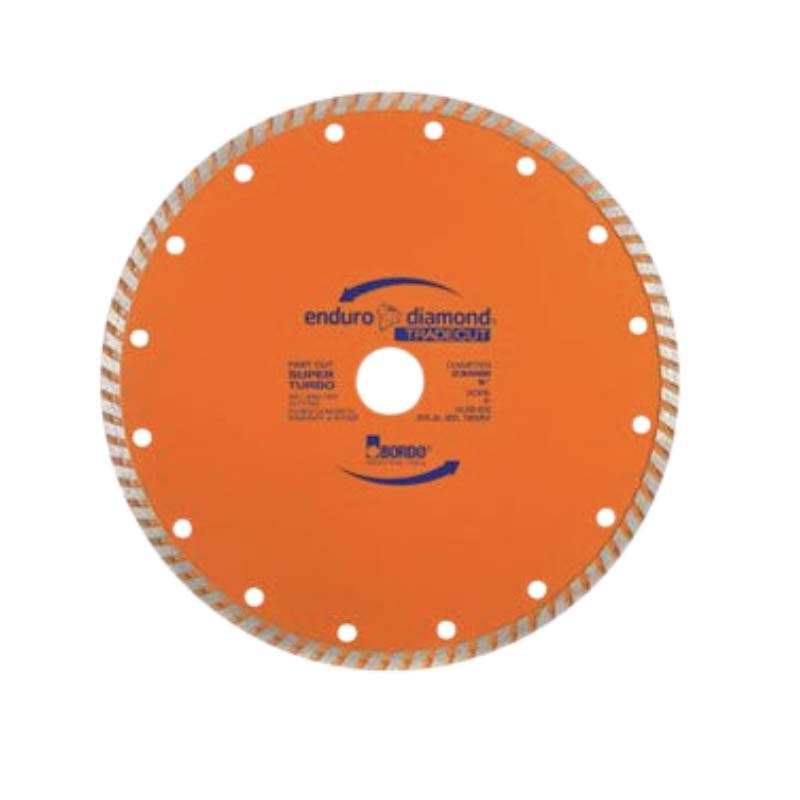

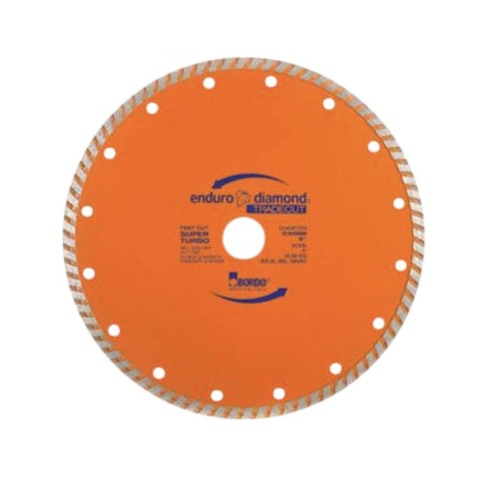

Bordo TradeCut Turbo Fast Cut Diamond Blade

  • Tradecut Diamond Saw Turbo Rim.
  • Turbo blades typically have soft to medium bonds for a variety of general purpose to specific cutting applications.
  • Turbo blades feature a continuous rim with an edge that is serrated.
  • This serrated edge is designed to give the blade faster cutting speeds while maintaining a smooth cut, combining the best qualities from both segmented and continuous rim blades.
  • Diamond blades do not cut, they actually grind through the material by exposing new diamond at the right moment just before the old diamond wears away.
  • The newly exposed diamonds again will wear, chip, or break out of the metal bond in the segment, while the metal bond gradually wears away to expose new diamond.
  • This process is repeated over and over until there is no diamond remaining and the blade is worn out.
  • Ideally and to get the maximum life out of a diamond blade, the metal should wear away at just the right time to expose new diamond for optimum cutting performance.
  • If the metal wears away too quickly, the diamonds are exposed to soon and get torn out of the metal bond before they are fully worn.
  • The result is a very short blade life.
  • If the metal wears away too slowly, the diamonds wear away before new diamond is exposed.
  • This is often referred to as a 'glazed blade'. Without exposed diamond the blade will not cut.
  • Abrasive materials like green concrete and asphalt will wear the metal bond very fast, so blades for these materials have a much harder metal bond to resist this abrasion.
  • The opposite occurs on a hard clay paver the clay paver is not abrasive enough to wear the metal bond fast enough to expose fresh diamond, therefore a different and much softer alloy is needed for cutting these types.
  • The single most important factor for the life of the blade is to match it to the job application and the type of equipment it is being used on.

Specifications

  • AIMS SKU A0199849
  • Brand Bordo
  • Model Number 7472-105
  • Barcode Number 9326518171584
  • Diameter (mm) 105
  • Maximum Speed (RPM) 15000
  • Segment Height (mm) 7
  • Bore (mm/inch) 16
  • Diameter in (inch) 4
  • Rim Type Turbo
  • Ideal For Fast Cut General Purpose
  • Type Diamond Saw Blade
SKU: A0199849

Bordo 105mm TradeCut Turbo Fast Cut Diamond Blade

Bordo TradeCut Turbo Fast Cut Diamond Blade

$17.91
RRP $22.24
SAVE $4.33 (19%)
