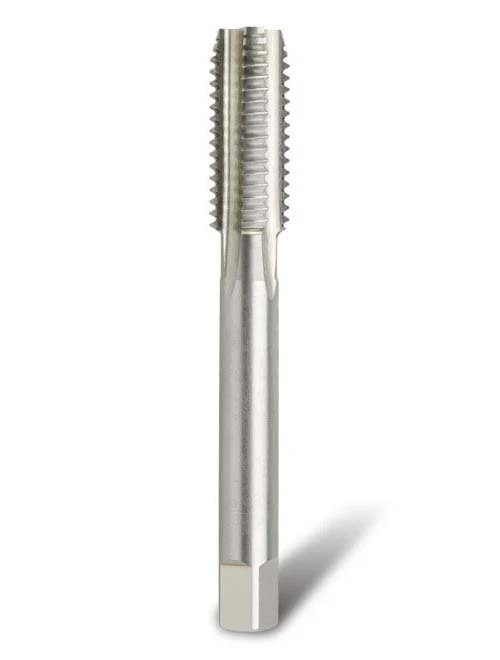

Bordo UNC Bottoming HSS Hand and Machine Tap - 3032

  • HSS UNC Bottoming Hand and Machine Tap.
  • Unified National Coarse thread form was introduced in 1948 as an attempt to standardise thread forms in the USA, Canada and the UK.
  • The thread profile of UNC is the same as for metric threads and is described in the JIS B0206 standard.
  • The thread is described by its major diameter and the number of threads per inch of length (TPI).
  • This thread series is commonly used in the mass production of bolts, screws and nuts.
  • It is used for threading into lower tensile strength materials (bronze, brass, aluminium and plastics) to obtain the best resistance to stripping of the internal thread.
  • It is also used on quick assembly or disassembly or if corrosion or slight damage is possible.
  • Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
  • Bottoming Taps are typically preceded by the use of a Taper or Intermediate Tap.
  • Manufactured from HSS this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use.

Specifications

  • AIMS SKU A0202436
  • Brand Bordo
  • Model Number 3032-5GB
  • Barcode Number 9326518027188
  • Diameter (inch) 5G
  • Drill Size (mm) 2.65
  • Overall Length (OAL) mm 48
  • Pitch/TPI 40
  • Flute Type Straight
  • Thread Form Type UNC
  • Type Hand Tap
  • Material HSS
  • Lead Bottoming
  • Surface Finish Bright
SKU: A0202436

Bordo 5G" x 40 TPI UNC Bottoming HSS Hand and Machine Tap (3032)
