Description

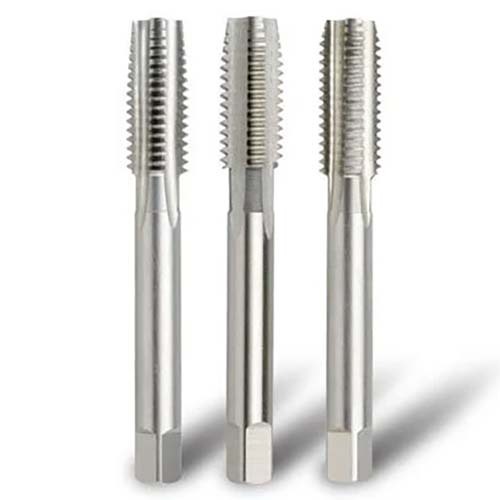

Bordo UNC Tap Set HSS Hand and Machine Tap - 3032

  • HSS UNC Hand and Machine Tap Set.
  • Unified National Coarse thread form was introduced in 1948 as an attempt to standardise thread forms in the USA, Canada and the UK.
  • The thread profile of UNC is the same as for metric threads and is described in the JIS B0206 standard.
  • The thread is described by its major diameter and the number of threads per inch of length (TPI).
  • This thread series is commonly used in the mass production of bolts, screws and nuts.
  • It is used for threading into lower tensile strength materials (bronze, brass, aluminium and plastics) to obtain the best resistance to stripping of the internal thread.
  • It is also used on quick assembly or disassembly or if corrosion or slight damage is possible.
  • Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
  • Intermediate Taps have a lead of four threads and are used in most general purpose applications to cut a thread true to a pre-drilled pilot hole.
  • Taper Taps have a lead of eight threads and are used as a starting tap in difficult or high precision holes.
  • Manufactured from HSS this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use.

Specifications

  • AIMS SKU A0202457
  • Brand Bordo
  • Model Number 3032-5GTS
  • Barcode Number 9326518027362
  • Diameter (inch) 5G
  • Drill Size (mm) 2.65
  • Overall Length (OAL) mm 48
  • Pitch/TPI 40
  • Flute Type Straight
  • Thread Form Type UNC
  • Type Hand Tap Set
  • Material HSS
  • Lead Set
  • Surface Finish Bright
SKU: A0202457

Bordo 5G" x 40 TPI UNC Tap Set HSS Hand and Machine Tap (3032)

Bordo UNC Tap Set HSS Hand and Machine Tap - 3032

$86.12
RRP $152.77
SAVE $66.65 (44%)
