Description

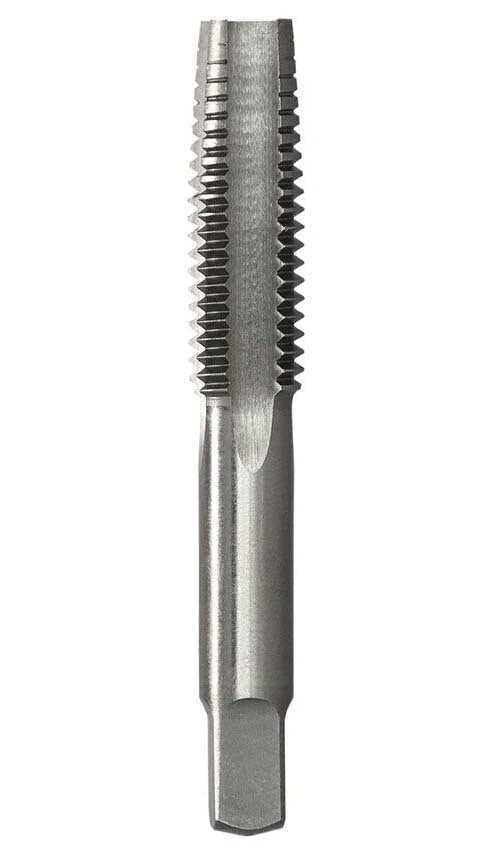

Bordo UNC Taper Chrome Alloy Hand Tap

  • Chrome Alloy UNC Taper Hand Tap.
  • Used as thread chasers to clean an existing thread.
  • They can also be used to create a new female thread in non-ferrous metals and plastics.
  • Chrome alloy taps are not suitable for creating precision, safety or critical threads.
  • Unified National Coarse thread form was introduced in 1948 as an attempt to standardise thread forms in the USA, Canada and the UK.
  • The thread profile of UNC is the same as for metric threads and is described in the JIS B0206 standard.
  • The thread is described by its major diameter and the number of threads per inch of length (TPI).
  • This thread series is commonly used in the mass production of bolts, screws and nuts.
  • It is used for threading into lower tensile strength materials (bronze, brass, aluminium and plastics) to obtain the best resistance to stripping of the internal thread.
  • It is also used on quick assembly or disassembly or if corrosion or slight damage is possible.
  • Taper Taps have a lead of eight threads and are used as a starting tap in difficult or high precision holes.

About Taper Taps

  • Taper Taps have a lead of eight threads and are used as a starting tap in difficult or high precision holes.
  • Manufactured from chrome alloy this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use.

About UNC (Unified National Coarse)

  • This thread form was introduced in 1948 as an attempt to standardise thread forms in the USA, Canada, and the UK.
  • The thread profile of UNC is the same as for metric threads and is described in the JIS B0206 standard.
  • The thread is described by its major diameter and the number of threads per inch of length (TPI).
  • This thread series is commonly used in the mass production of bolts, screws and nuts.
  • It is used for threading into lower tensile strength materials (bronze, brass, aluminium, and plastics) to obtain the best resistance to stripping of the internal thread.
  • It is also used for quick assembly or disassembly or if corrosion or slight damage is possible.

Specifications

  • AIMS SKU A0195431
  • Brand Bordo
  • Model Number 4232-5GT
  • Barcode Number 9326518043256
  • Overall Length (OL) mm 48
  • Surface Finish Bright
  • Thread Per Inch (TPI) 40
  • Tap Lead Taper
  • Diameter (inch) x TPI 5G x 40
  • Tap Diameter (inch) 5G
  • Flute Type Straight
  • Drill Diameter (mm) 2.65
  • Type Hand Tap
  • Thread Form UNC
  • Material Chrome Alloy
  • System Measurement UNC
SKU: A0195431 On Sale

Bordo 5G x 40 TPI UNC Taper Chrome Alloy Hand Tap

Bordo UNC Taper Chrome Alloy Hand Tap

$9.04
$10.63
