Description

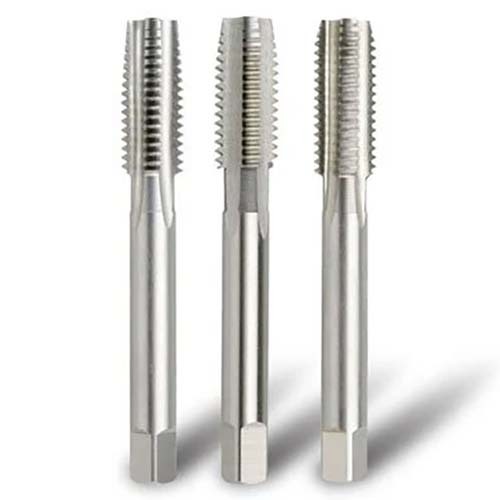

Bordo UNF Tap Set HSS Hand and Machine Tap

  • HSS UNF Hand and Machine Tap Set.
  • Unified National Fine thread form was introduced in 1948 as an attempt to standardise thread forms in the USA, Canada and the UK.
  • The thread profile of UNF is the same as for metric threads and is described in the JIS B0206 standard.
  • The thread is described by its major diameter and the number of threads per inch of length (TPI).
  • When used on external threads this series has greater tensile stress area than coarse threads of the same size.
  • Fine series threads will resist stripping out better than coarse threads in areas where the external and mating internal threads are subjected to loads equal to or greater than the capacity of the screw or bolt.
  • Fine threads are also used where the length of engagement is limited 1-1/4 or where wall thickness demands a fine pitch.
  • Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
  • Intermediate Taps have a lead of four threads and are used in most general purpose applications to cut a thread true to a pre-drilled pilot hole.
  • Taper Taps have a lead of eight threads and are used as a starting tap in difficult or high precision holes.
  • Manufactured from HSS this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use.

Specifications

  • AIMS SKU A0202577
  • Brand Bordo
  • Model Number 3034-4GTS
  • Barcode Number 9326518028123
  • Diameter (inch) 4G
  • Drill Size (mm) 2.4
  • Overall Length (OAL) mm 48
  • Pitch/TPI 48
  • Flute Type Straight
  • Thread Form Type UNF
  • Type Hand Tap Set
  • Material HSS
  • Lead Set
  • Surface Finish Bright
SKU: A0202577

Bordo 4G" x 48 TPI UNF Tap Set HSS Hand and Machine Tap (3034)

Bordo UNF Tap Set HSS Hand and Machine Tap - 3034

$86.12
RRP $152.77
SAVE $66.65 (44%)
