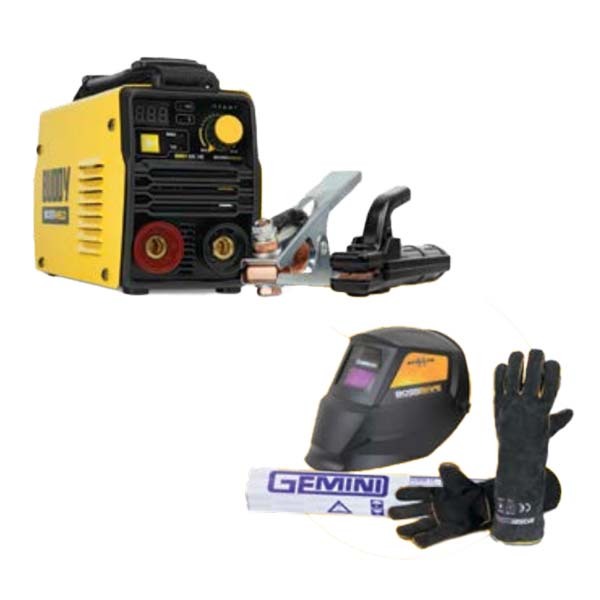

Bossweld Buddy-Arc 140 Arc/ Lift Tig Welder Bundle

Get this awesome bundle with all the accessories you need.

Bundle Contains:

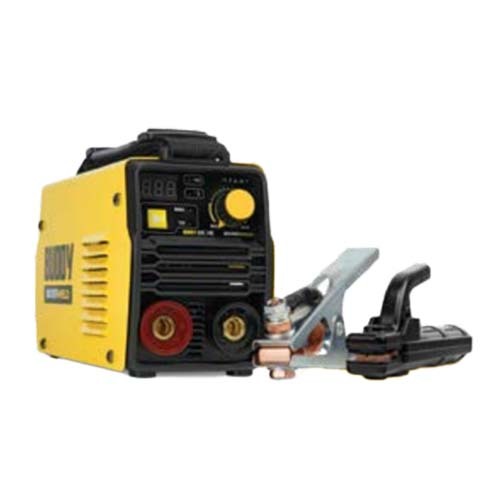

Bossweld Buddy ARC 140 Arc/ Lift Tig Welder 240V 10Amp

  • The Bossweld Buddy Arc 140 with VRD is the latest in IGBT MMA stick electrode welder technology.
  • This very lightweight welding machine is easy to use, generating a very smooth and stable output.
  • Built-in arc force, hot start, and anti-stick functions.
  • Ideal for welding jobs around the home, farm, workshop, or on-site.

Machine Features

  • Ultra-portable DC Stick and Lift Arc TIG welder.
  • 240V Input / 10Amp plug.
  • Variable current control with digital display.
  • Easy to set up and operate.
  • Built-in arc force, hot start, and anti-stick functions.
  • VRD (Voltage Reduction Device) Increased Safety.

Applicable Material

  • Mild Steel
  • Stainless Steel
  • Cast Iron

Common Application

  • General repairs and maintenance
  • Rural applications
  • Site repair & construction

Technical Specifications

Power Supply 240V
Primary Input Plug Fitted 10 Amp
Duty Cycle (MMA) 15% @ 140A / 60% @ 70A / 100% @ 54A
Open Circuit Voltage 62V (18V VRD)
Output Current Range 10 - 140A
I ieff 10A
Input Current Max 25A
Power Factor 0.76
Protection Class IP21S
Insulation Class H
Thermal Overload Protected Yes
Electrode Diameter Range 2.5 - 3.2mm
Machine Dimensions 210 x 100 x 137mm
Machine Weight 2kg

Included Accessories

  • Electrode Holder
  • Earth Clamp
  • Carry Strap
  • Carry Case

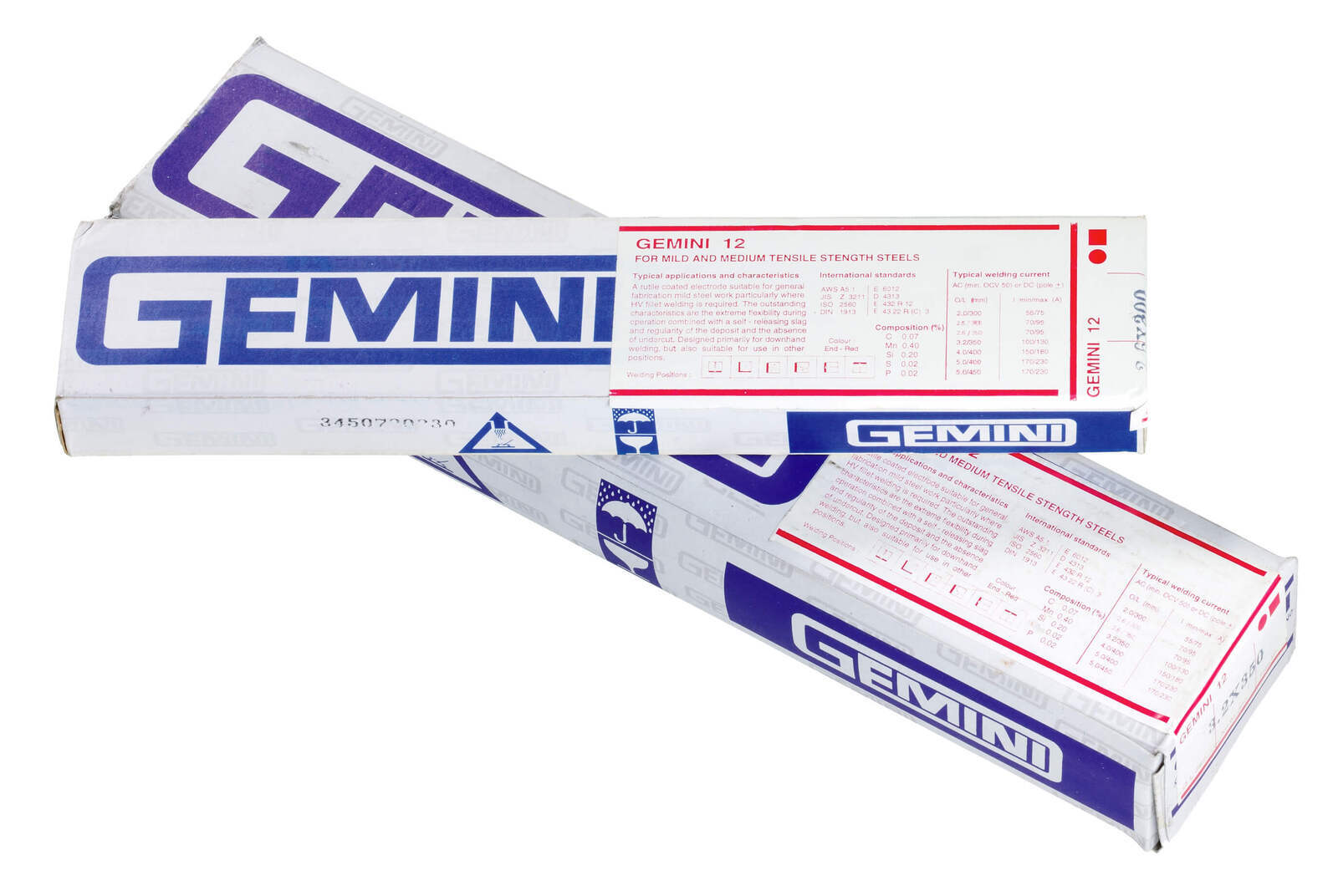

Gemini 12 Electrode Stick 3.2mm - 5kg Pack

  • Versatile electrode
  • Easy to strike
  • One Amperage for a range of positions
  • All positions including vertical down
  • A5.1 E 6012

Bosssafe Stealth V Electronic Welding Helmet

  • The BossSafe ECO series are electronic welding helmets that are expertly designed to provide protection to your eyes, neck and face from flash burn, ultraviolet & infrared light, sparks and heat while performing welding tasks.
  •  Stealth V Electronic Welding Helmet
  • Viewing area: 92mm x 42mm
  • Weight: 480g

Applications

  • MIG & Arc welding
  • Carbon Arc Gouging
  • No Replaceable Batteries

Bossweld 16" Black & Gold Welding Glove (Pair)

  • BossSafe 16-inch welding glove
  • Black & Gold

Features

  • Budget welding gauntlet
  • 40cm Leather
  • Internal lining

Applications

  • Welding workshops
  • Site welding
  • Where additional protection from welding is required

Specifications

  • AIMS SKU 633110WPWELD
  • Brand Bossweld
  • Type TIG Machine Bundle
SKU: 633110WPWELD On Sale
