Description

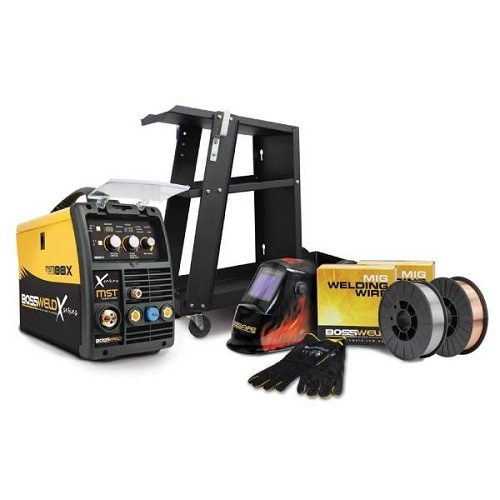

X-Series MST 188X Multi-Process Machine Bundle

The Bossweld MST 188X is a lightweight and portable multi-process inverter-based welder.
It provides the opportunity to MIG, Stick, and TIG weld from the same machine, making it the ideal choice for your next welding project.

Package Inclusion

Feature

Specifications

AIMS SKU A0122121

Brand Bossweld

Model Number 699188BUNDLE

Type Multi Process Machine

I Max MIG 37.5A

Minimum KVA 9

Thermal Overload Protected Yes

Electrode Diameter Range 1.6mm to 3.2mm

Wire Diameter Range 0.6mm to 1.0mm

Protection Class P21 / H

I Eff MIG/MMA 10A, TIG 9.5A

I Max MMA 44A

I Max TIG 29.5A

Output Current Range Mma / TIG 10-180Amps

Output Current Range MIG 40-180Amps

Open Circuit Voltage Mig 58.5V

Duty Cycle @ 40°c Mig 10% @ 180A

Duty Cycle @ 40°c Tig 10% @ 180A

Duty Cycle @ 40°c Mma 10% @ 180A

Power Supply /Primary Input Power Single Phase, 240V 50-60, HZ +/-15%
