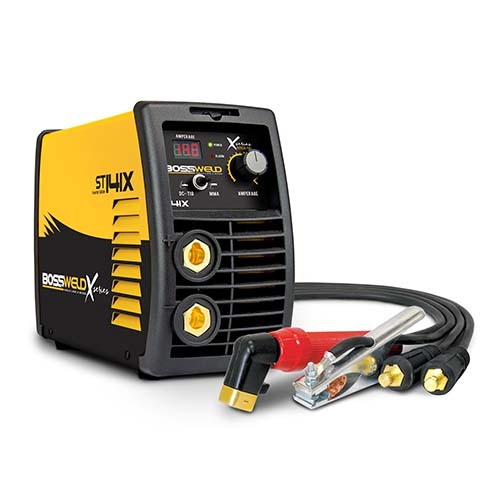

Bossweld ST 141X Inverter 10 Amp MMA TIG Welder 240 Volt

Description

X-Series ST 141X MMA/TIG Machine

The Bossweld ST 141X combines the latest IGBT power technology with smooth accurate digital control.
It provides the user with the ability to stick weld (MMA) as well as DC TIG weld with lift ARC start.

Package Inclusion

ST 141X DC Inverter Welder
3m Twist lock Electrode Holder
2.5m 200Amp Earth clamp
Carry Strap
Operator Manual

Feature

140 Amp output
DC MMA and DC TIG welding
Fitted 10 Amp plug
Digital LED display
DC TIG lift arc start
Excellent arc stability
Lightweight and portable
35/50 Dinse output connectors
Stepless amperage control
Generator safe
IGBT inverter technology

Specifications

AIMS SKU A0122115

Brand Bossweld

Model Number 691141

Type MMA/TIG Machine

Power Supply /Primary Input Power Single Phase, 240V, 50-60 HZ, +/-15%

Duty Cycle @ 40°c Mma MMA 10% @ 140A

Duty Cycle @ 40°c Tig TIG 20% @ 140A

Open Circuit Voltage 68V

Output Current Range 16-140Amps

I Max TIG 20A

I Max MMA 31A

I Eff 9.9A

Protection Class IP21S / S

Electrode Diameter Range 1.6mm to 3.2mm

Thermal Overload Protected Yes

Minimum KVA 8
