Description

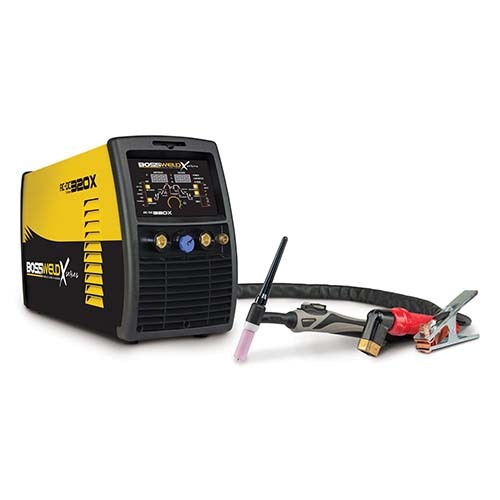

X-Series TIG 320X TIG Machine

  • The Bossweld AC/DC 320X TIG welder utilizes the latest in IGBT welder technology and is designed with the professional TIG welder in mind.
  • You have the ability to adjust all aspects of the weld cycle.
  • Being an AC/DC, you can TIG weld aluminum, making this welder the ideal choice for any tradesperson or maintenance technician.

Package Inclusion

  • Bossweld TIG 320X Inverter Welder 415V
  • 4m Agility 26F Current Control TIG Torch
  • 3m Electrode Holder
  • 3m Earth clamp
  • 3m Gas Hose 5mm
  • Argon Regulator Bobbin
  • Operators Manual

Feature

  • 320 Amp output
  • High-frequency arc start
  • Simple to operate
  • Digital LED display
  • Foot control ready
  • Adjustable pulse
  • Pre and post gas adjustment
  • AC balance adjustment
  • 2T / 4T trigger latching
  • Water cooler ready
  • Arc waveform control
  • IGBT inverter technology

Specifications

  • AIMS SKU A0122129
  • Brand Bossweld
  • Model Number 692345
  • Type TIG Machine
  • Power Supply /Primary Input Power 3 Phase 415V 50HZ +/-10%
  • Duty Cycle @ 40°c 60% @ 320A,100% @ 250A
  • Open Circuit Voltage 61V
  • Output Current Range 10-320 Amps
  • I Max TIG 21A
  • I Max MMA 27.5A
  • I Eff TIG 15A
  • Protection Class IP23 / H
  • Electrode Diameter Range 1.6mm to 5.0mm
  • Minimum KVA 15
SKU: A0122129

Bossweld TIG 320X Inverter Welder 415V

X-Series TIG 320X TIG Machine

$2,869.57
RRP $3,929.70
SAVE $1,060.13 (27%)
