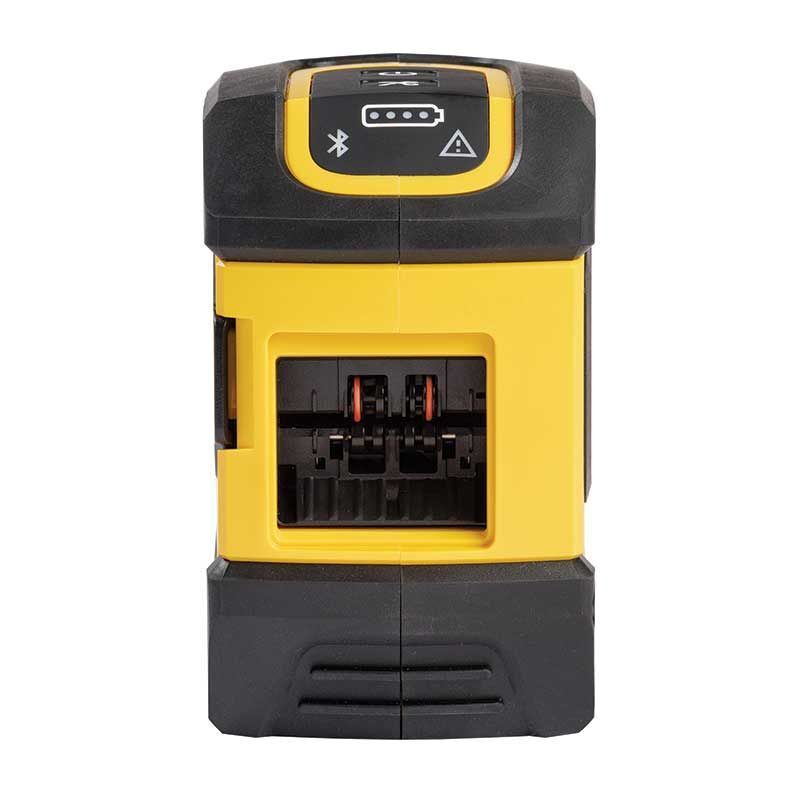

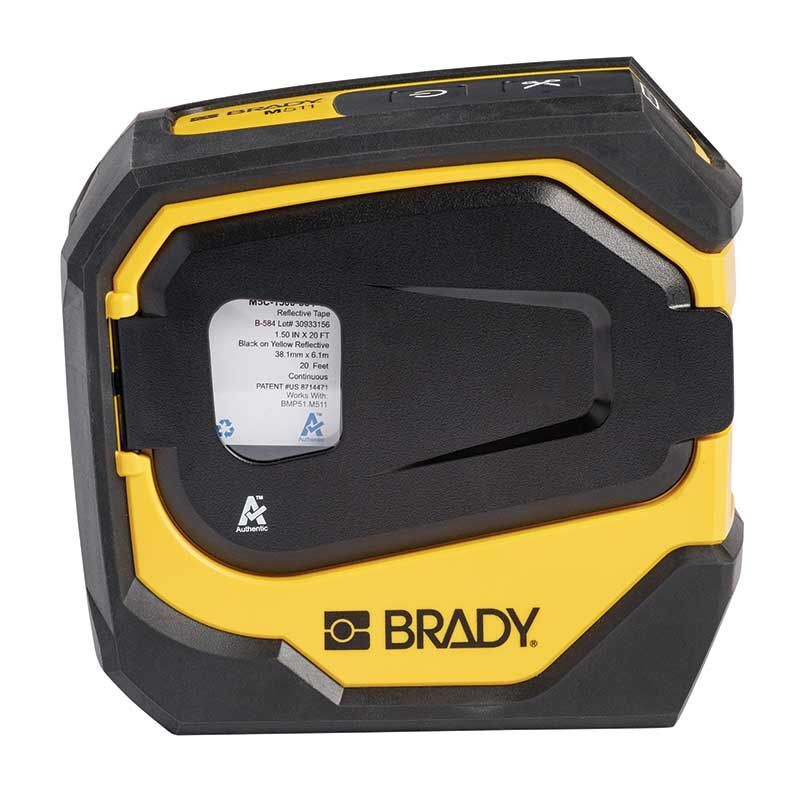

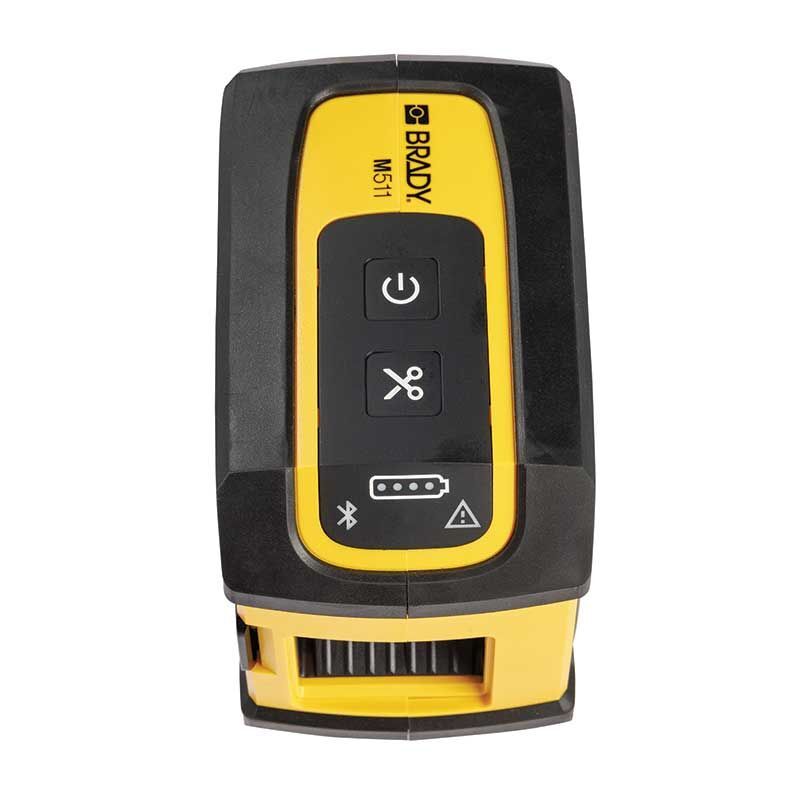

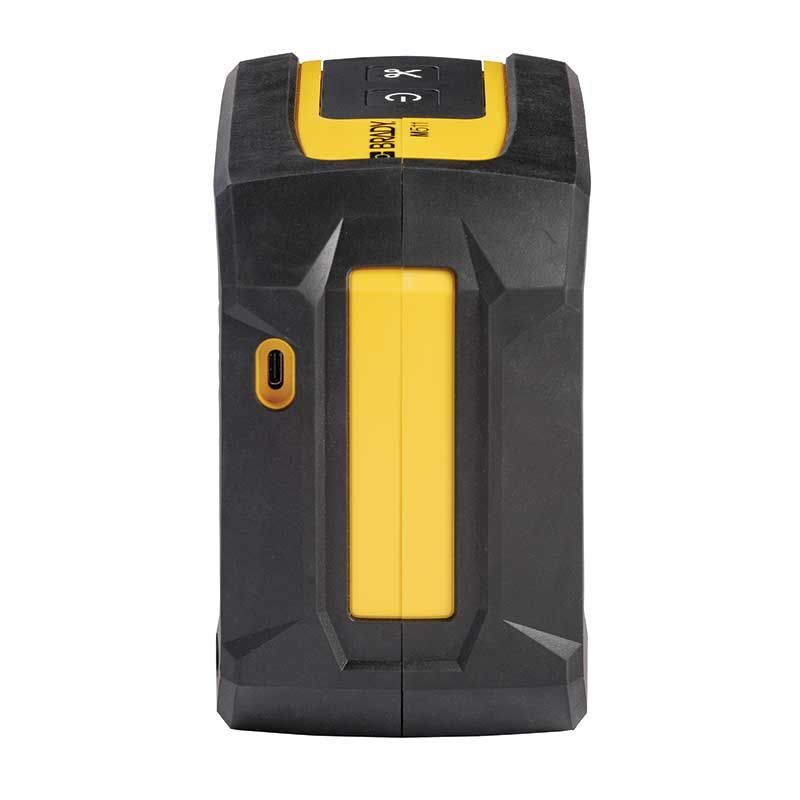

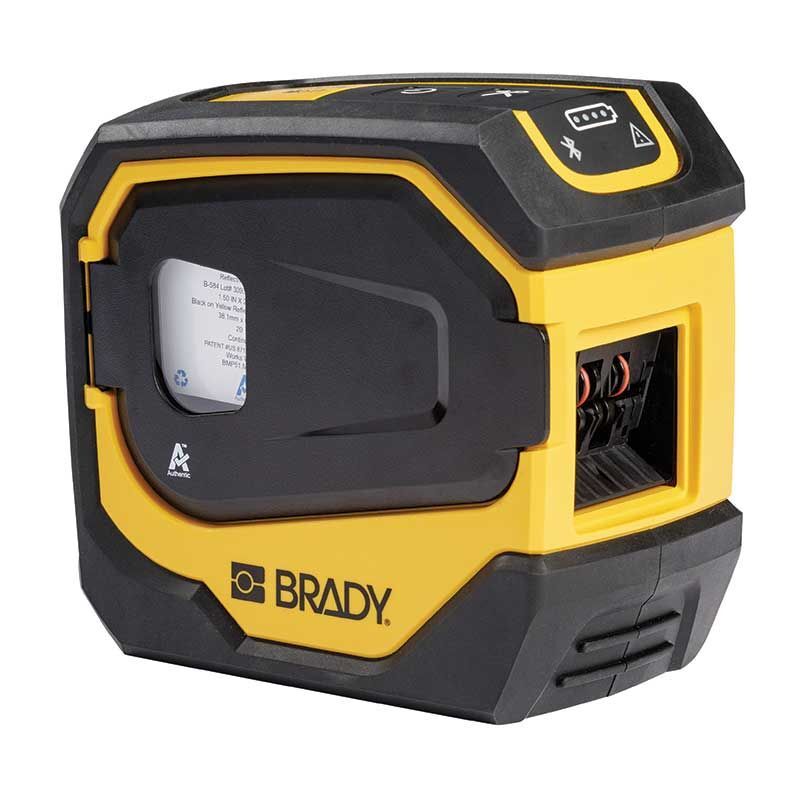

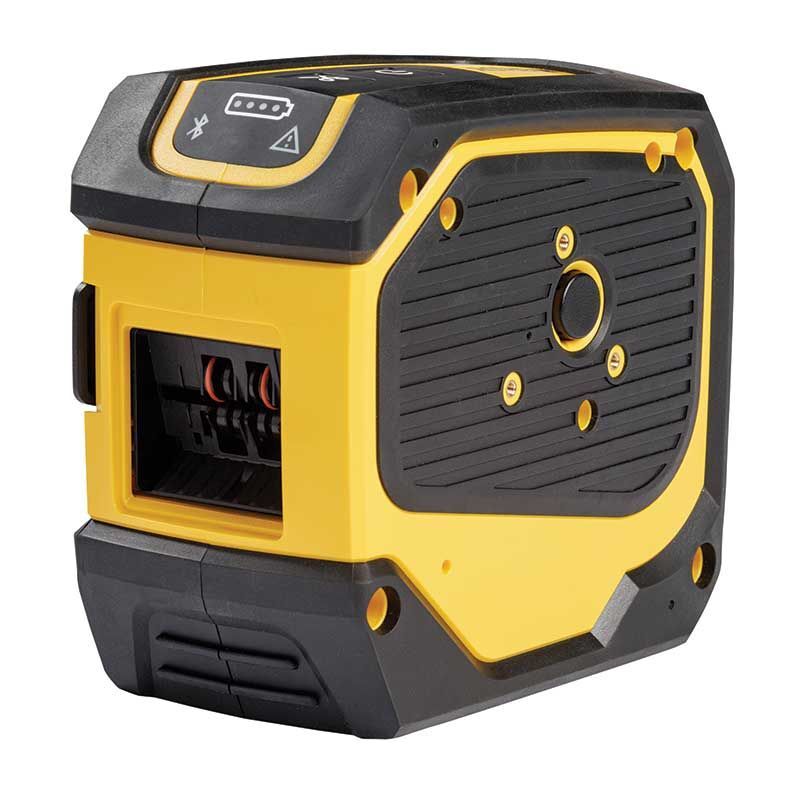

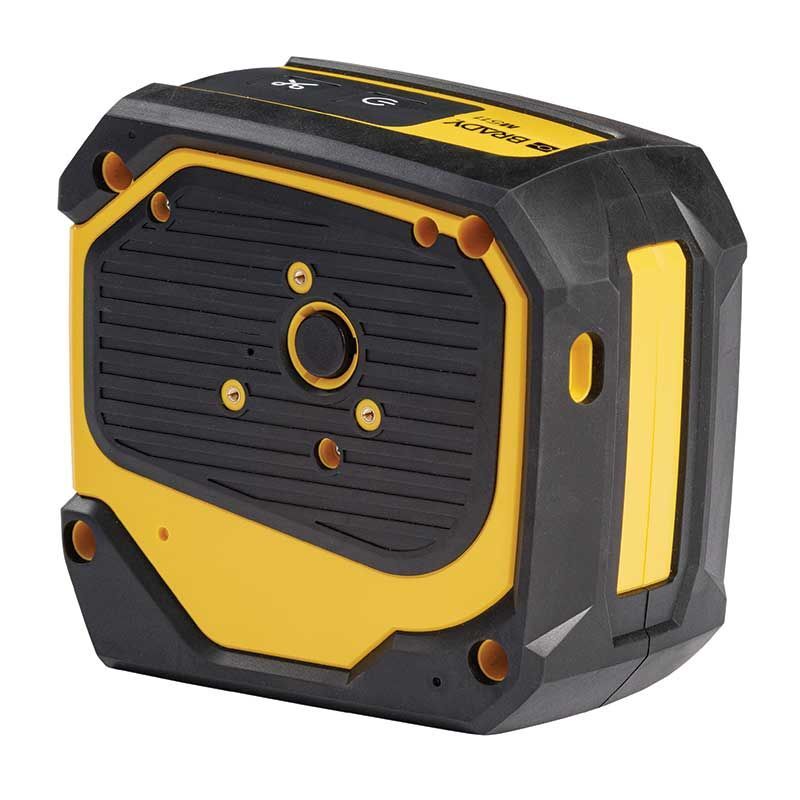

Brady M511 Label Printer

• Ideal for larger applications - print up to 38.1mm labels
• Less waste - go edge to edge with text, graphics, and barcodes
• Longer battery life with an internal Li-ION battery - 8+ hours of work; 1,000 labels on a single charge
• More durable - resists 1.8m drops, shocks, 113kg crushes, and blowing sand and dust (MIL-STD-810G)
• Prints anywhere - Bluetooth 5.0 (19m range); connects up to 5 users simultaneously
• Uses label creation software - Express Labels app via Bluetooth on a phone/tablet; Brady Workstation on a PC
• Saves time; saves space - features an auto label cutter and prints upright or on its side
• Colour: Black, Yellow
• Device Drop Test & Durability: Resistant to 1.8m drops, Resistant to military-grade shocks (MIL-STD-810G), Sand & Dust, Resistant to 113kg crushes
• Maximum Labels per Day: 1000
• User Interface Type: Mobile device, PC
• Connectivity Options: Bluetooth® 5 Low Energy (class II)
• Cutter Type: Auto Cutter
• Maximum Label/Tape Width (mm): 38.10 mm

Specifications:

Key Characteristics

Brand Name	Brady®
Primary Noun, Basic Function	Portable Printer
Quantity or Roll Length	1
Sold	1 Each
Industry	Biotechnology, Buildings identification, Chemical, Construction, Education, Electrical, Electronics, ICT, Laboratory, Manufacturing, Tourism & recreation, Voice & data communication
Barcode	88843462055
Trade Name	M511



Material Characteristics

Storage Temperature Range (C)	-18°C - 43°C



Printing Specifications

On Screen Indicators	Error Messaging
Power Source	AC Adaptor, Rechargeable Battery, USB
Print Technology	Thermal Transfer
Printing Functions	Auto Format, Date/Time Stamp, Fixed Length, Justification, Multi-copy, Reverse, Rotate, Vertical, Serialisation, Frame Feature, List Function, Autosizing, Bold, Condensed, Expand, Italics, Outline, Underline
Serialisation	Multiple & Linked

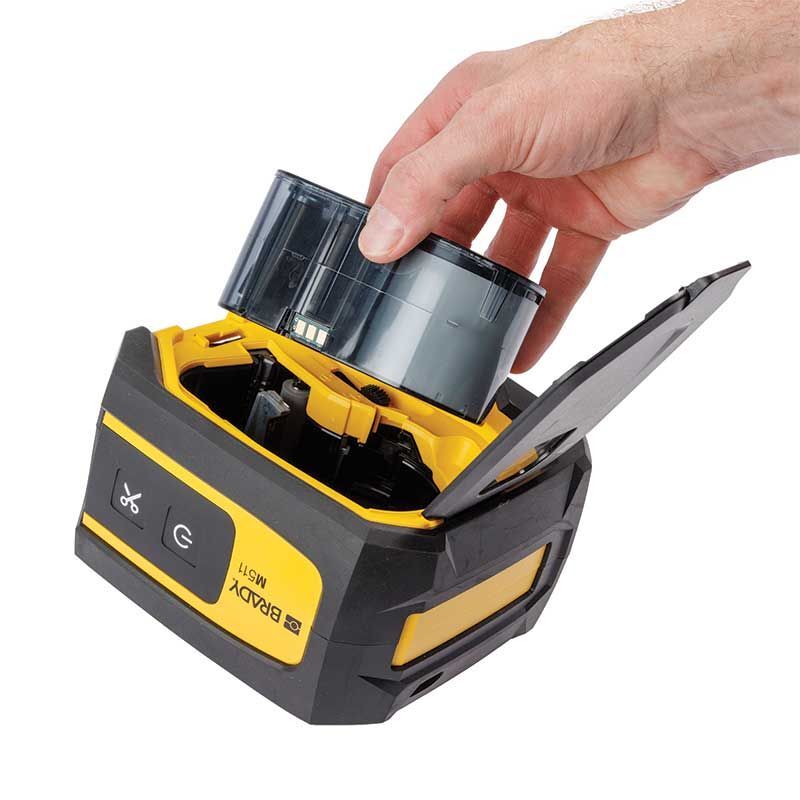

Media Format	Media and Ribbon in Cartridge, supplied together
Colour Printing Capability	Single Colour
Maximum Labels per Day	1000
Maximum Print Speed (mm/s)	33.8
Operating Humidity Range	20%-90% (non-condensing)
Operating Temperature Range (C)	4°C - 43°C
Barcode Symbologies - 1D	Code 128A, Code 128B, Code 128C, Code 39, HIBC, Interleaved 2 of 5, UPC-A, UPC-E, Code 128, EAN-8, EAN-13, Code 39 Full ASCII, Code 93 Full ASCII, EAN-13 Extension 2, EAN-13 Extension 5, EAN-8 Extension 2, EAN-8 Extension 5, GS1-128, JAN-13, Code 93, JAN-8
Barcode Symbologies - 2D	Data Matrix, More through Brady Workstation, PDF417, QR code, More through software
Barcode Symbologies - Combined	Code 128A, Code 128B, Code 128C, Code 39, HIBC, Interleaved 2 of 5, More through Brady WorkStation, UPC-A, UPC-E, Data Matrix, PDF417, QR code, Code 128, EAN-8, EAN-13, More through software, Code 39 Full ASCII, Code 93 Full ASCII, Code 93, EAN-13 Extension 2, EAN-13 Extension 5, EAN-8 Extension 2, EAN-8 Extension 5, GS1-128, JAN-13, JAN-8



Features

User Interface Type	Mobile device, PC
Application	Asset Tracking, Circuit Board Labelling, Component and Equipment Labelling, Data and telecommunications Labelling, Electrical Labelling, Facility Identification, General identification, Laboratory Labelling, Lean and 5S Labelling, Inventory and Inspection Labelling, Safety Identification, Warehouse Marking, Wire and cable Labelling
Built-In Label Wizards	Pipe Marker, Wire Wrap, Breaker Box, Flags, Patch Panel, Terminal Block, Vial, Safety, General, Sleeves, Slide, Tube
Connectivity Options	Bluetooth® 5 Low Energy (class II)
Device Connectivity	Mobile device connected, PC connected
Display Type	None
Printer and Label Applications	Circuit Board, Datacom, Electrical, General Identification, Inspection Repair, Laboratory, Rating & Name Plates, Wire & Cable, Lean / 5S, Safety, Pipe Marker, Hazardous Materials
Power Supply Voltage	110 - 240 V
Device Drop Test & Durability	Resistant to 1.8m drops, Resistant to military-grade shocks (MIL-STD-810G), Sand & Dust, Resistant to 113kg crushes
Smart Cell	Yes
Battery Type	Lithium-ion Battery - Internal, not removable
Recharge Time	2.5 hours
How Is Battery Shipped	Shipped installed in equipment
Cutter Type	Auto Cutter
Keyboard Type	None
Number of Symbols	Dependant on software
Print Resolution dpi	300 dpi
Special Characters Quantity	Determined by software
Font Sizes	4 - 150 pt
Auto Shut-Off / Power Conserve	Yes, User Configurable
Battery mAh Rating	1200 mAh



Dimensions

Height (mm)	91.44 mm
Width (mm)	152.40 mm
Depth (mm)	162.56 mm
Overall Dimension	152.40 mm (W) x 91.44 mm (H) x 162.56 mm (D)
Weight (kg)	1.04 kg
Maximum Label/Tape Width (mm)	38.10 mm
Maximum Print Width (mm)	36.58mm
Storage Humidity Range	10%-90% (non-condensing)
Package Weight (kg)	1.9 kg



Compatibility

Phones & Tablets Supported	iPhone 5S or newer with iOS 10+, Android devices with Android OS 6+
Compatible Brady B-Numbers	B-109, B-145, B-342, B-351, B-403, B-412, B-414, B-417, B-422, B-425, B-425A, B-427, B-428, B-432, B-461, B-482, B-481, B-483, B-483A, B-488, B-490, B-492, B-494, B-498, B-499, B-584, B-595, B-7425, B-7641
Label Material Types	FreezerBondz™ Polyester, Heat-shrink Polyolefin, Metallized Polyester, Nylon Cloth, Paper, Polyester, Polypropylene, Reflective Tape, Self-laminating Polyester, Self-laminating Vinyl, StainerBondz™ Polyester, Tamper-resistant Vinyl, Vinyl, Vinyl Cloth, Repositionable Paper
Languages Available	Bulgarian, Croatian, Czech, Danish, Dutch, English (US), Estonian, Finnish, French (France), German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal), Romanian, Russian, Slovak, Slovenian, Swedish, Turkish, Chinese (Traditional and Simplified), Bahasa (Indonesian), Bahasa Malay, Vietnamese, Thai, Arabic (Egypt), Spanish (universal), Hebrew
Compatible Media	M4-, M4C-, M5-, M5C-



Compliance

Approved Ship To Countries

Antigua and Barbuda, Anguilla, Aruba, Argentina, Bolivia, Bahamas, Bermuda, Barbados, Brazil - Non-Government Companies, Belize, Colombia, Chile, Cayman Islands, Costa Rica, Channel Islands, Canada, Djibouti, Dominica, Dominican Republic, Egypt, Equatorial Guinea, El Salvador, Ecuador, Ethiopia, Eritrea, Estonia, Finland, Germany, Greece, Hungary, Iceland, Ireland, Israel, Italy, Gibraltar, Gabon, Gambia, Ghana, Guinea-Bissau, Iraq, Ivory Coast, British Virgin Islands, French Guiana, Greenland, Grenada, Guadeloupe, Guatemala, Guyana, Haiti, Honduras, Jamaica
