Specifications

AIMS SKU A0150820
Strand Simplex
Chain Number 06B
Pitch (inch) 3/8
Number of Teeth 13

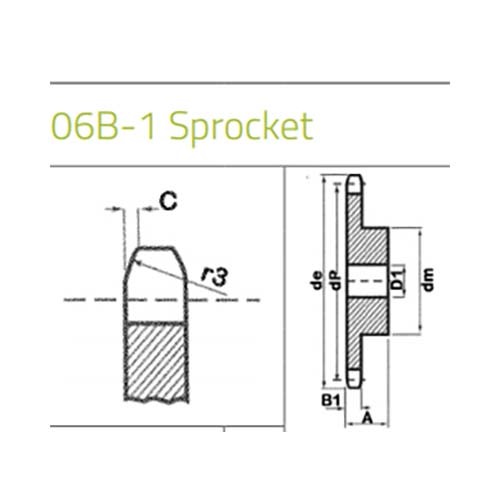

d1 8
A 25
Chain Pitch (mm) 9.53
Chain Inside (mm) 5.72
Chain Roller ø (mm) 6.35
de 43.5
dp 39.8
dm 28
App. kg 0.11
Pinions Tooth Width B1 (mm) 5.3

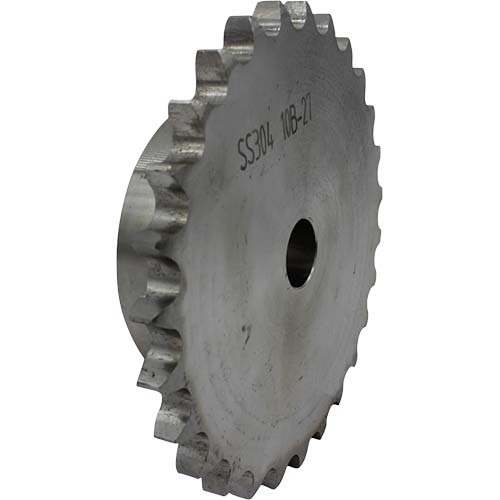

• Type Pilot Bore Sprocket
• System of Measurement British (BS)
