Description

BS Simplex Plate Wheel Sprocket

Sprockets to suit BS roller chains.
British standard sprockets are made to suit the British standard (BS) roller chains.
Platewheel sprockets are a flat sprocket with teeth around the outside diameter of the sprocket body consisting of a straight "pilot bore" hole in the centre.

Specifications

AIMS SKU A0062239

Strand Simplex

Chain Number 24B

Number of Teeth 50

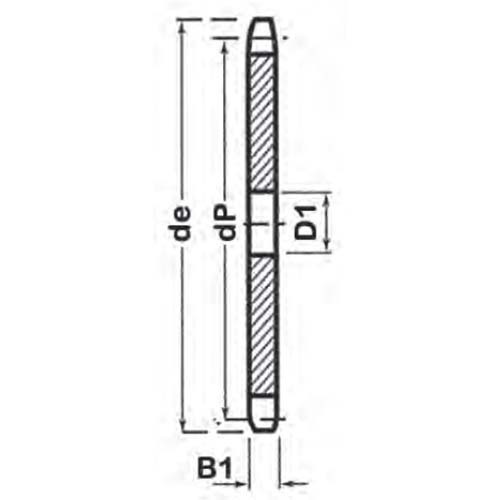

Outer Diameter de (mm) 621.7

Pitch Diameter dp (mm) 606.78

Bore Diameter D1 (mm) 30

Tooth Width B1 (mm) 11.7

Chain Pitch (mm) 38.1

Chain Inside (mm) 12.7

Chain Roller ø (mm) 11.91

Type Plate Wheel Sprocket
System of Measurement British (BS)
