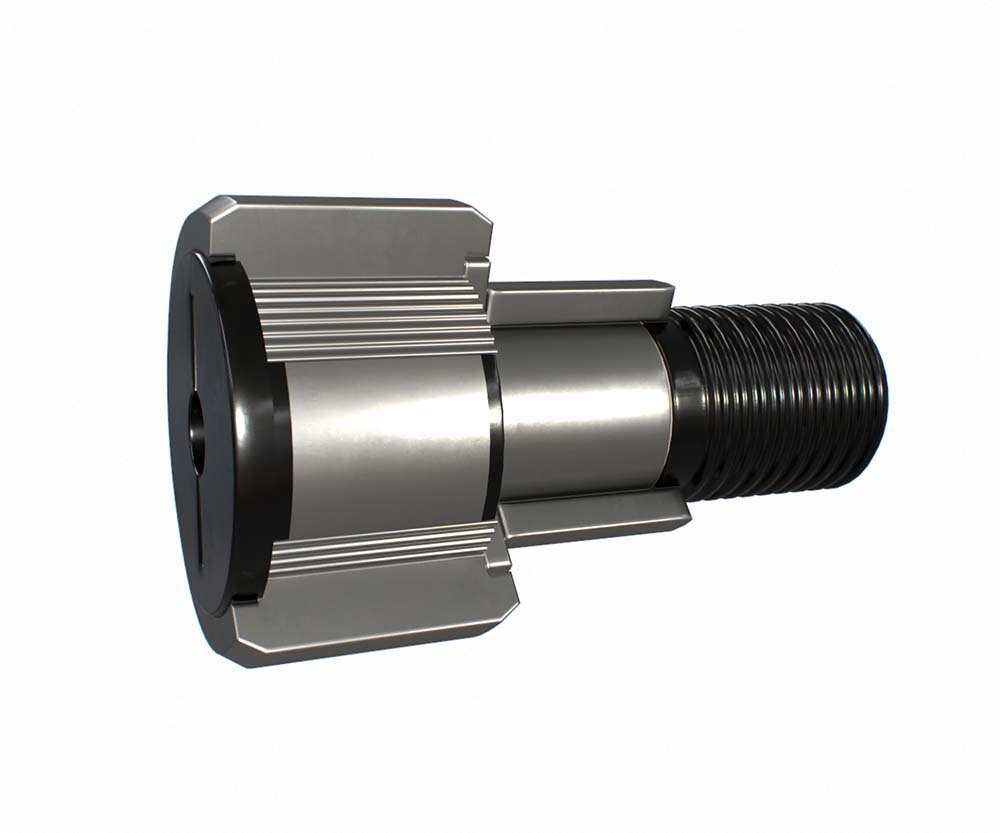

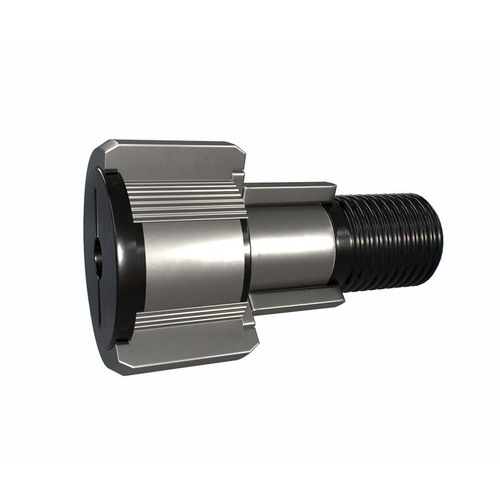

Cam Follower Eccentric Collar 2RS Full Complement Crowned Outer Ring

  • Sealed type.
  • With hexagon hole.
  • Full Complement.

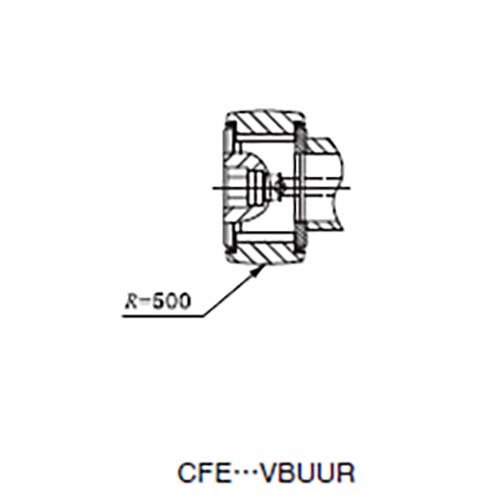

  • Crowned outer ring.
  • CFE, Eccentric type Cam Follower.
  • An eccentric collar is assembled over the Cam Follower stud, enabling the outer ring to be positioned easily in the radial direction against the mating track surface.
  • Eccentricity is 0.4 to 1.5mm.

About Cam Follower

  • Cam Followers are bearings with a stud incorporating needle rollers in a thick-walled outer ring.
  • They are designed for outer ring rotation, and the outer rings run directly on mating track surfaces.
  • They are widely used as follower bearings for cam mechanisms and for linear motions.

About Structure and Features

  • These bearings are designed for outer ring rotation and have superior rotational performance with a small coefficient of friction and high load capacity.
  • As studs already have threads or steps, they are easy to mount.
  • Cam Followers are follower bearings for cam mechanisms and linear motions and have high rigidity and high accuracy.
  • They are, therefore, used widely for machine tools, industrial robots, electronic devices, and OA equipment.
  • Stainless steel-made Cam Followers are superior in corrosion resistance and suitable for applications in environments where oil cannot be used or water splashed, and in clean rooms.

Specifications

  • AIMS SKU A0155841
  • Brand IKO
  • Model Number CFE20VBUUR/IKO

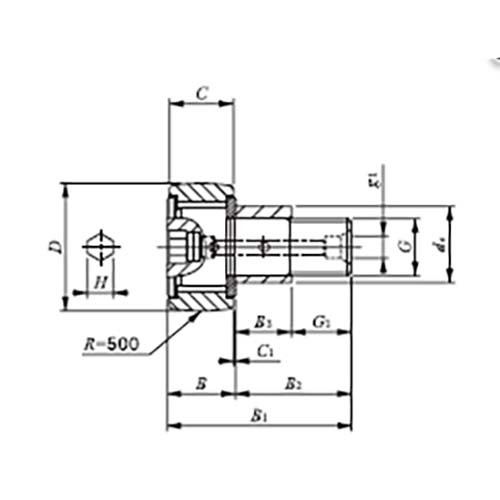

  • Width (mm) 24
  • Basic Static Load Rating C0 (N) 64500
  • Maximum Allowable Static Load (n) 37500
  • Maximum Tightening Torque (n-m) 119
  • Mounting Dimensio F Min. (mm) 34
  • Eccentricity (ε) 0.8
  • B2 (mm) 40.5
  • B1 Max (mm) 66.1
  • B3 (mm) 19.5
  • De (mm) 27
  • Roller Diameter 52 mm
  • Stud Diameter 27 mm
  • Basic Dynamic Load Rating C (N) 33200
  • rs min 1
  • Roller Width 24 mm
  • B Max (mm) 25.6
  • Outside Diameter (mm) 52
  • H (mm) 8
  • g1 (mm) 21
  • g (mm) M20 x 1.5
  • C1 (mm) 0.8
  • Type Cam Follower
SKU: A0155841

IKO Cam Follower Eccentric Collar Full Comp 2RS Crowned Outer Ring 27 x 52 x 24mm

Cam Follower Eccentric Collar Full Complement Crowned

$184.04
