Description

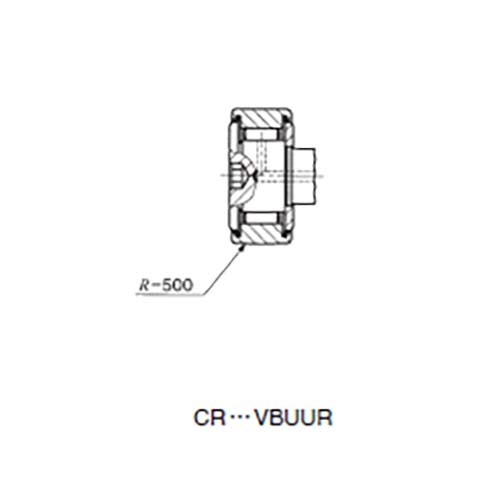

Cam Follower Full Complement 2RS Crowned Outer Ring (CR)

  • Sealed type.
  • Crowned outer ring.
  • Full complement.
  • CR, Inch series Cam Follower.

About Cam Follower

  • Cam Followers are bearings with a stud incorporating needle rollers in a thick-walled outer ring.
  • They are designed for outer ring rotation, and the outer rings run directly on mating track surfaces.
  • They are widely used as follower bearings for cam mechanisms and for linear motions.

About Structure and Features

  • These bearings are designed for outer ring rotation and have superior rotational performance with a small coefficient of friction and high load capacity.
  • As studs already have threads or steps, they are easy to mount.
  • Cam Followers are follower bearings for cam mechanisms and linear motions and have high rigidity and high accuracy.
  • They are, therefore, used widely for machine tools, industrial robots, electronic devices, and OA equipment.
  • Stainless steel-made Cam Followers are superior in corrosion resistance and suitable for applications in environments where oil cannot be used or water splashed, and in clean rooms.

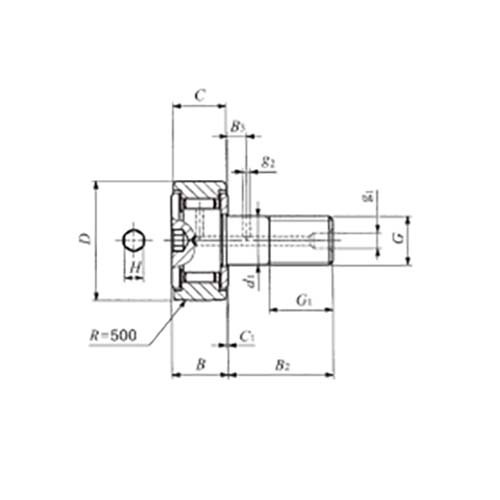

Specifications

  • AIMS SKU A0155892
  • Brand IKO
  • Model Number CR8-1VBUUR/IKO
  • D1 (mm) 4.826
  • Roller Diameter 1/2 in
  • Mounting Dimension f Min. (in) 21/64
  • Mounting Dimension f Min. (mm) 8.334
  • Maximum Tightening Torque N-m 1.4
  • R (in) 1/64
  • H (in) 1/8
  • C1 (in) 1/32
  • B2 (in) 5/8
  • B max (in) 0.43
  • G1 (in) 1/4
  • G UNF No.10-32
  • Stud Diameter (inch) 0.19
  • Stud Diameter (mm) 4.826
  • B2 (mm) 15.87
  • Stud Diameter 0.19 in
  • Width (in) 3/8
  • Basic Static Load Rating C0 (N) 5410
  • Basic Dynamic Load Rating C (N) 4710
  • Roller Width 3/8 in
  • B Max (mm) 10.9
  • Outside Diameter (in) 1/2
  • H (mm) 3.175
  • g1 (mm) 6.35
  • R (mm) 0.397
  • D (mm) 12.7
  • C1 (mm) 0.794
  • C (mm) 9.525
  • Type Cam Follower
SKU: A0155892

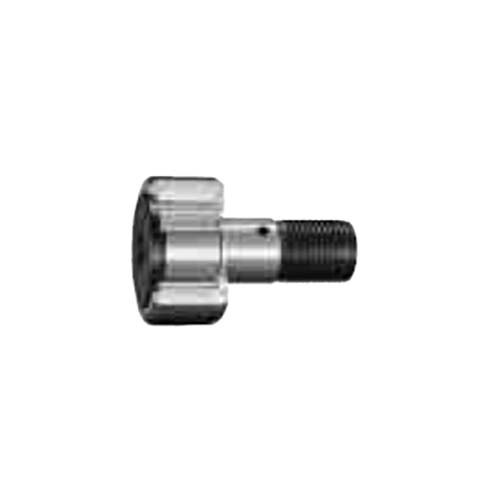

IKO Cam Follower Full Complement Hex 2RS Crowned Outer Ring 0.19 x 1/2 x 3/8"

Cam Follower Full Complement 2RS Crowned Outer Ring - CR
