Description

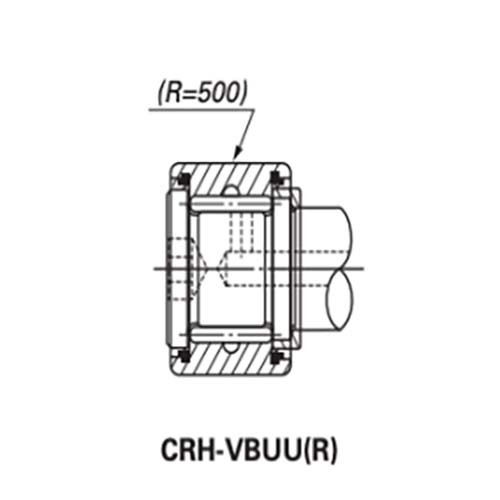

Cam Follower 2RS Full Complement Crowned Outer Ring (CRH)

  • Sealed type.
  • With hexagon hole.
  • Full complement.
  • Crowned outer ring.
  • CRH, Inch series Cam Follower

About Cam Follower

  • Cam Followers are bearings with a stud incorporating needle rollers in a thick-walled outer ring.
  • They are designed for outer ring rotation, and the outer rings run directly on mating track surfaces.
  • They are widely used as follower bearings for cam mechanisms and for linear motions.

About Structure and Features

  • These bearings are designed for outer ring rotation and have superior rotational performance with a small coefficient of friction and high load capacity.
  • As studs already have threads or steps, they are easy to mount.
  • Cam Followers are follower bearings for cam mechanisms and linear motions and have high rigidity and high accuracy.
  • They are, therefore, used widely for machine tools, industrial robots, electronic devices, and OA equipment.
  • Stainless steel-made Cam Followers are superior in corrosion resistance and suitable for applications in environments where oil cannot be used or water splashed, and in clean rooms.

Specifications

  • AIMS SKU A0155863
  • Brand IKO
  • Model Number CRH26VBUUR/IKO
  • D1 (mm) 22.225
  • C1 (in) 1/16
  • Stud Diameter (mm) 22.225
  • Stud Diameter (inch) 7/8
  • G UNF 7/8 - 14
  • G1 (in) 3/16
  • B max (in) 0.96
  • B2 (in) 1 1/2
  • B3 (in) 3/8
  • B3 (mm) 9.525
  • g2 (mm) 2.381
  • G2 (in) 3/32
  • H (in) 5/16
  • R (in) 20
  • Maximum Tightening Torque N-m 162
  • Mounting Dimension f Min. (mm) 26.988
  • Mounting Dimension f Min. (in) 1 1/16
  • B2 (mm) 38.1
  • Roller Diameter 1 5/8 in
  • Stud Diameter 7/8 in
  • Width (in) 7/8
  • d1 (in) 7/8
  • Basic Static Load Rating C0 (N) 40100
  • Basic Dynamic Load Rating C (N) 28200
  • Roller Width 7/8 in
  • B Max (mm) 24.3
  • Outside Diameter (in) 1 5/8
  • H (mm) 7.938
  • g1 (mm) 4.762
  • R (mm) 500
  • D (mm) 41.275
  • C1 (mm) 1.588
  • C (mm) 22.225
  • Type Cam Follower
SKU: A0155863

IKO Cam Follower Full Comp HD Hex 2RS Crowned Outer Ring 7/8 x 1-5/8 x 7/8"

Cam Follower Full Complement Crowned Outer Ring - CRH

$161.01
