Specifications

AIMS SKU A0155844
Brand IKO
Model Number CRH8-1VBUU/IKO

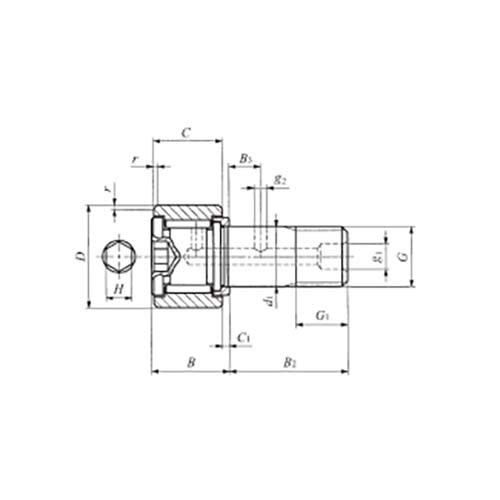

D1 (mm) 6.35
Stud Diameter 1/4 in
Maximum Tightening Torque N-m 3.4
Mounting Dimension f Min. (in) 21/64
Mounting Dimension f Min. (mm) 8.334
R (in) 1/64
H (in) 1/8
C1 (in) 1/32
B2 (in) 5/8
B max (in) 0.44
G1 (in) 1/4
G UNF 1/4 - 28
Stud Diameter (inch) 1/4
Stud Diameter (mm) 6.35
B2 (mm) 15.875
Roller Diameter 1/2 in
Width (in) 3/8
d1 (in) 1/4
Basic Static Load Rating C0 (N) 5410
Basic Dynamic Load Rating C (N) 4710
Roller Width 3/8 in
B Max (mm) 11.1
Outside Diameter (in) 1/2
H (mm) 3.175
g1 (mm) 6.35
R (mm) 0.397
D (mm) 12.7
C1 (mm) 0.794
C (mm) 9.525

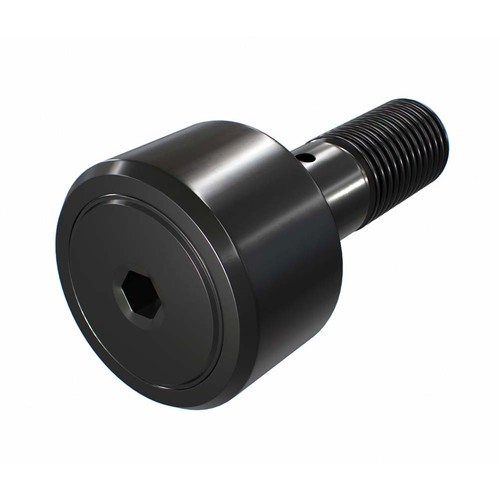

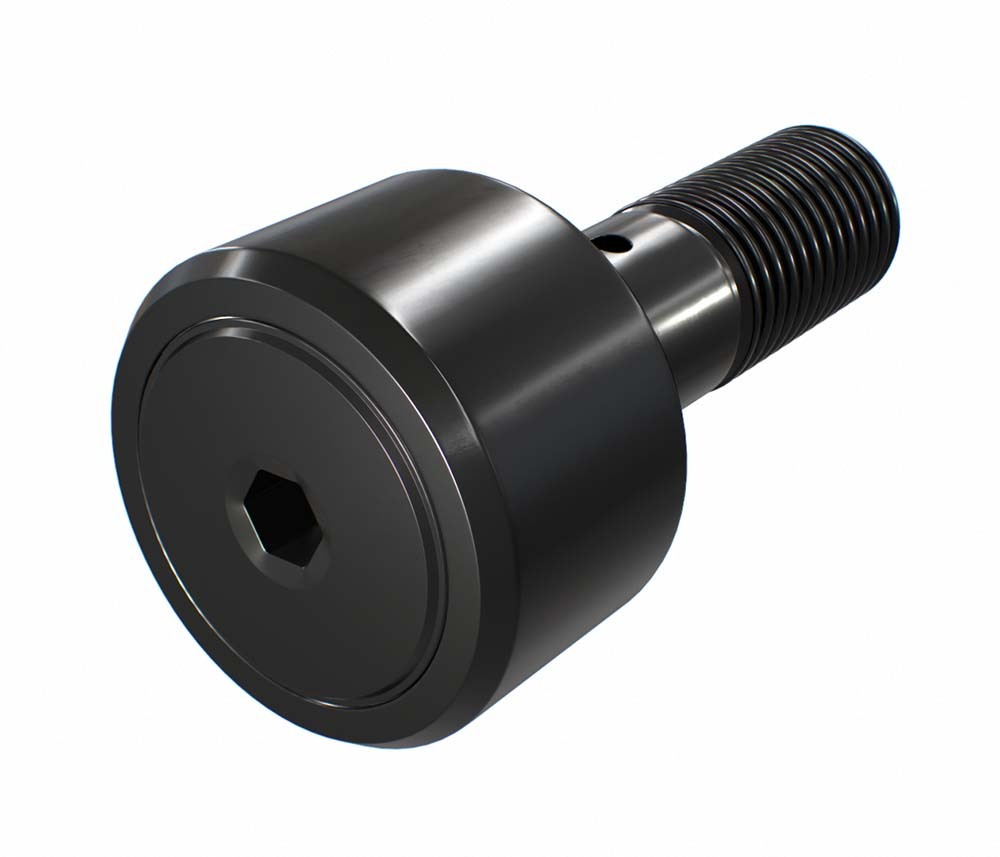

• Type Cam Follower
