Specifications
- AIMS SKU A0156190
- Brand IKO
- Model Number CF10-1VBUUR/IKO
- D1 (mm) 10
- Width (mm) 12
- rs min (mm) 0.3
- Mounting Dimension f Min. (mm) 16
- Maximum Allowable Static Load (n) 8650
- Maximum Tightening Torque (n-m) 13.8
- B2 (mm) 23
- Roller Diameter 26 mm
- Stud Diameter 10 mm
- B1 (mm) 36.2
- Basic Static Load Rating C0 (N) 14500
- Basic Dynamic Load Rating C (N) 9570
- Roller Width 12 mm
- Outside Diameter (mm) 26
- H (mm) 4
- g1 (mm) 12
- g (mm) M10 x 1.25
- b (mm) 13.2
- C1 (mm) 0.6
- Type Cam Follower
SKU: A0156190

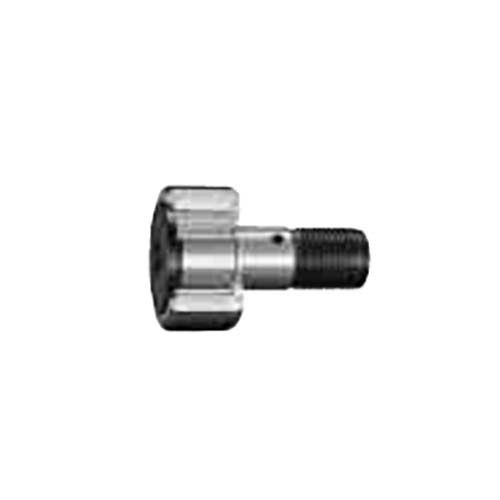

IKO Cam Follower Full Complement Hex 2RS Crowned Outer Ring 10 x 26 x 12mm
Cam Follower Full Complement Hex 2RS Crowned Outer Ring
$49.84
